SPDT snap-action switch with a 1A current rating and 125V AC voltage rating. Features a plunger actuator, screw termination, and panel/chassis mount with screw mounting. Offers a 130gf operating force, 50,000 cycle electrical life, and 100,000 cycle mechanical life. Operates within a temperature range of -65°C to 400°C and is RoHS compliant.
Current Rating1A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron TZ-1GV2 technical specifications.
General
Actuator Type
PLUNGER
Contact Type
Snap Action
Current Rating
1A
Depth
17.4mm
Electrical Life
50000Cycles
Lead Free
Lead Free
Length
49.2mm
Max Operating Temperature
400°C
Mechanical Life
100000Cycles
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Panel, Chassis Mount, Screw
Number of Poles
1
Operating Force
130gf
Orientation
Straight
Package Quantity
1
Packaging
Tray
Ratings
IP00
RoHS Compliant
Yes
Series
TZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
54g
Width
21.8mm
Compliance
RoHS
Compliant
Datasheet
Omron TZ-1GV2 Datasheet
Download the complete datasheet for Omron TZ-1GV2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

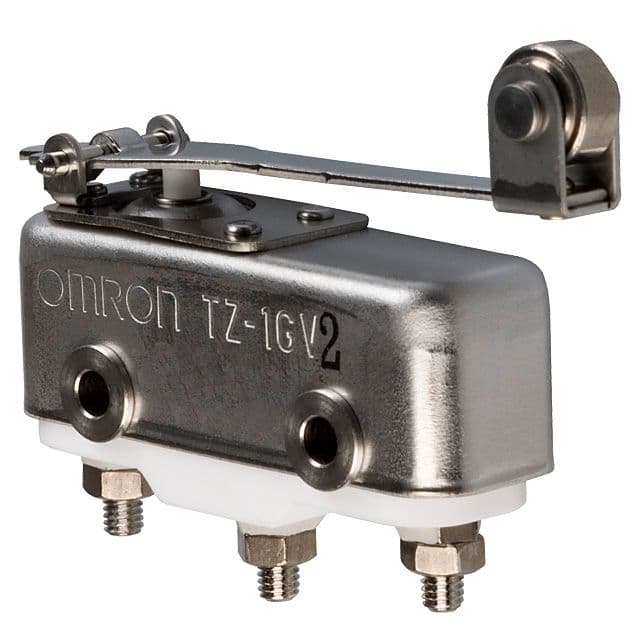

Product Images
