Omron
V-104-1C25
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever Quick Connect 10A 250VAC 250VDC 248.57VA 1.23N Screw Mount
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron V-104-1C25 technical specifications.
General
Contact Material
Silver
Electrical Life
300000Cycles
Max Operating Temperature
80°C
Max Voltage Rating (DC)
250V
Mechanical Life
50000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount, Screw
Operating Force
125gf
Packaging
Bulk
Ratings
IP40
RoHS Compliant
Yes
Series
V
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Omron V-104-1C25 Datasheet
Download the complete datasheet for Omron V-104-1C25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

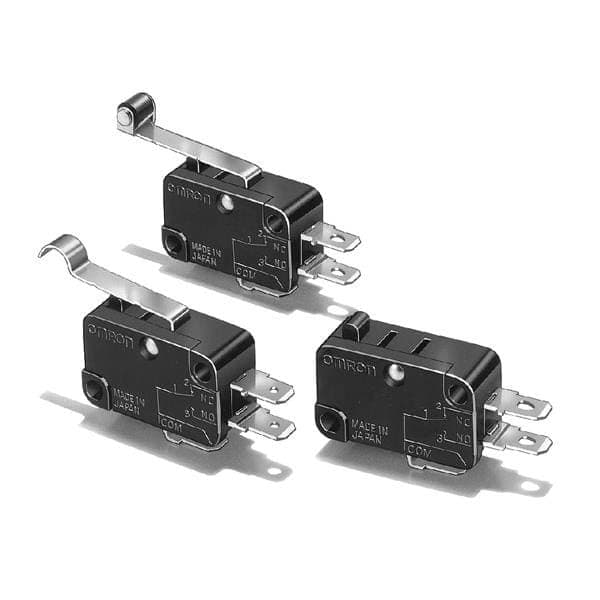

Product Images
