Technical Specifications
Omron V-156-1C25 technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 50000000Cycles |
| Mount | Chassis Mount, Screw |
| Operating Force | 1.23N |
| Packaging | Bulk |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | V |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Omron V-156-1C25 Datasheet
Download the complete datasheet for Omron V-156-1C25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

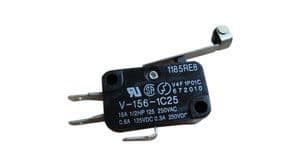

Product Images
