Current Rating16A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron V-163-1C5 technical specifications.
General
Contact Material
Silver
Current Rating
16A
Electrical Life
100000Cycles
Max Operating Temperature
80°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
50000000Cycles
Mount
Chassis Mount, Screw
Operating Force
0.69N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
V
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Omron V-163-1C5 Datasheet
Download the complete datasheet for Omron V-163-1C5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

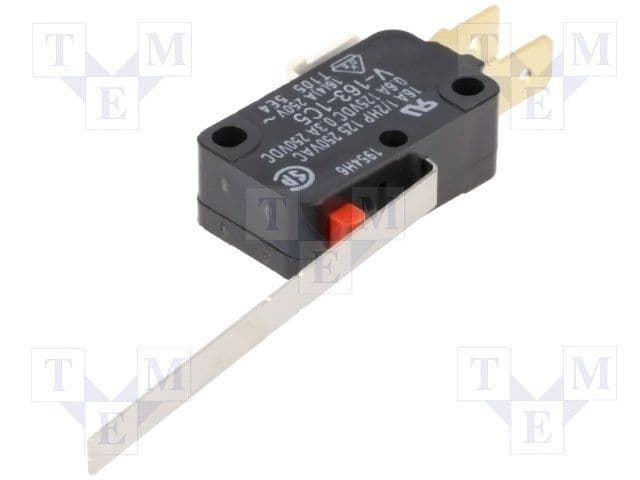

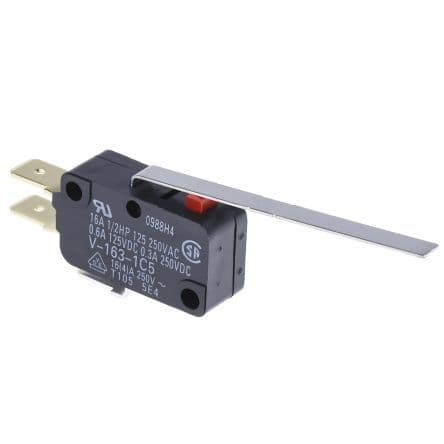

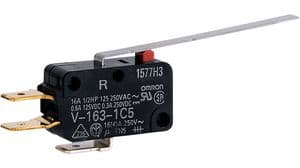

Product Images
