SPDT mini basic switch featuring a pin plunger actuator and quick connect termination. Rated for 125VAC and 30VDC with a 100mA contact current rating. Offers 1 million electrical cycles and 10 million mechanical cycles, with gold contact material. Designed for chassis mount and screw mounting, operating between -25°C and 80°C. IP40 rated and RoHS compliant.
Package100
Current Rating100mA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron VX-01-1C23 technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Electrical Life | 1000000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 80°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Screw |
| Operating Force | 0.49N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | VX |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 6.2g |
Compliance
| RoHS | Compliant |
Datasheet
Omron VX-01-1C23 Datasheet
Download the complete datasheet for Omron VX-01-1C23 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

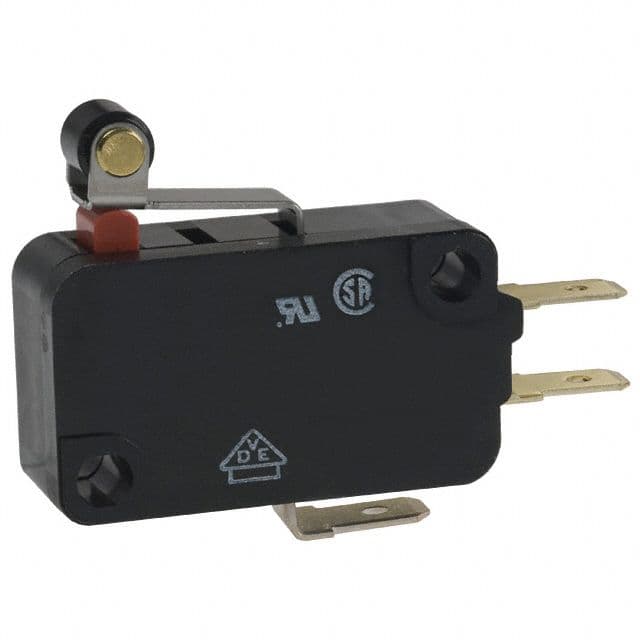

Product Images
