Omron
Z-15GW25
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 15A 250VAC 250VDC 186.42VA 0.98N Screw Mount Solder
Current Rating6A
MountingPanel, Chassis Mount
Quick Jump:
Technical Specifications
Omron Z-15GW25 technical specifications.
General
| Current Rating | 6A |
| Differential Travel | 0.062inch |
| Electrical Life | 500000Cycles |
| Max Operating Temperature | 80°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Panel, Chassis Mount |
| Operating Force | 100gf |
| Operating Position | 1.622inch |
| Overtravel | 0.158inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP00 |
| RoHS Compliant | Yes |
| Series | Z |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron Z-15GW25 Datasheet
Download the complete datasheet for Omron Z-15GW25 to view detailed technical specifications.
No datasheet is available for this part.

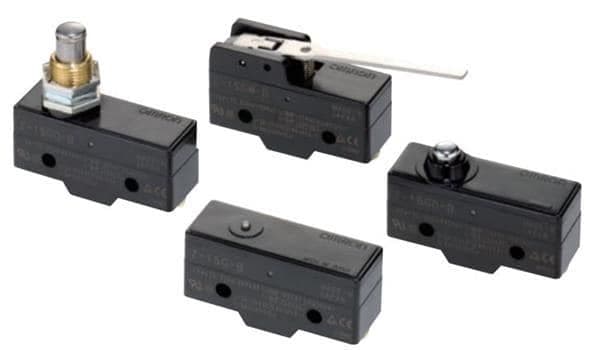

Product Images
