Technical Specifications
On-Shore 302-R341 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Insulation Material | Glass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Packaging | Tray |
| RoHS Compliant | No |
| Series | 302 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Not Compliant |
Datasheet
On-Shore 302-R341 Datasheet
Download the complete datasheet for On-Shore 302-R341 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

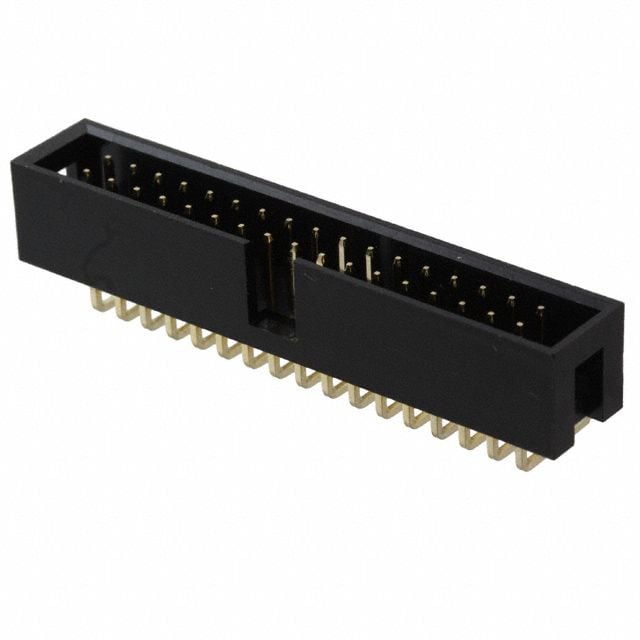

Product Images
