2-position, 1-row, 1-level terminal block with 5mm pitch. Features through-hole mounting and screw termination for wire gauges from 12AWG to 28AWG. Rated for 16A and 300V, with a maximum operating temperature of 105°C. Constructed with brass contacts and copper plating, housed in UL94 V-0 rated green material. Lead-free and RoHS compliant.
Voltage300V
Current16A
MountingThrough Hole
Quick Jump:
Technical Specifications
On-Shore ED350/2 technical specifications.
General
Color
Green
Contact Material
Brass
Contact Plating
Brass
Current
16A
Flammability Rating
UL94 V-0
Height
13.5mm
Housing Color
Green
Lead Free
Lead Free
Length
10.6mm
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Mount
Through Hole
Number of Levels
1
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Packaging
Bulk
Plating
Copper
RoHS Compliant
Yes
Series
ED350
Termination
Screw
Voltage
300V
Width
9mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
On-Shore ED350/2 Datasheet
Download the complete datasheet for On-Shore ED350/2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

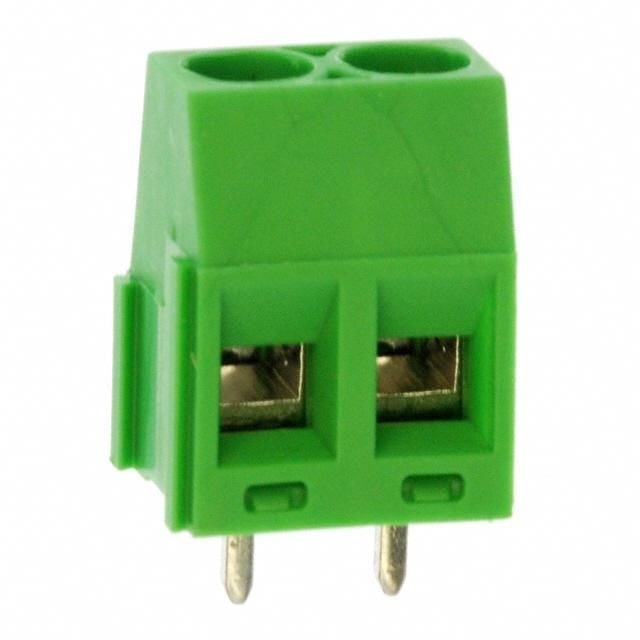

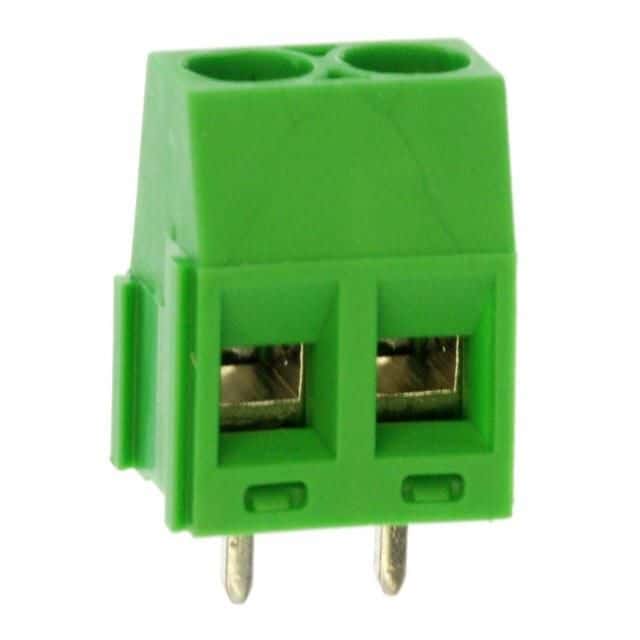

Product Images
