General purpose terminal block, 3 positions, 1 level, 1 row, 3 positions per level. Features 5.08mm pitch, through-hole mounting, and solder termination. Rated for 15A current and 300V voltage. Operating temperature range from -30°C to 105°C. Housing color is green, with brass contacts and copper plating. UL94 V-0 flammability rating.
Voltage300V
Current15A
MountingThrough Hole
Quick Jump:
Technical Specifications
On-Shore EDZ250/3 technical specifications.
General
| Color | Green |
| Contact Material | Brass |
| Contact Plating | Brass |
| Current | 15A |
| Flammability Rating | UL94 V-0 |
| Height | 10mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 15.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Plating | Copper |
| RoHS Compliant | No |
| Series | EDZ250 |
| Termination | Screw |
| Voltage | 300V |
| Width | 8.1mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
On-Shore EDZ250/3 Datasheet
Download the complete datasheet for On-Shore EDZ250/3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

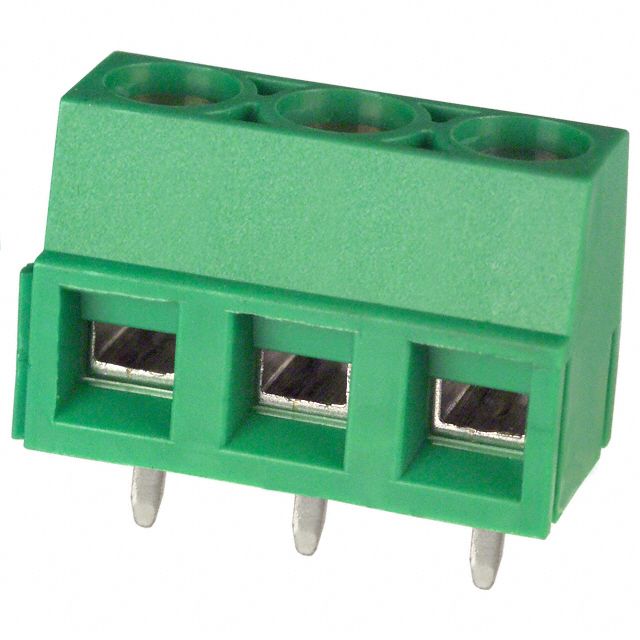

Product Images
