4-contact, female USB receptacle with right-angle mounting and solder termination. Features gold contact plating, UL94 V-0 flammability rating, and a white insulator. Operates within a temperature range of 0°C to 85°C. This through-hole, horizontal mount connector is unshielded and designed for telecom and datacom applications.
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
On-Shore USB-A1HSW6 technical specifications.
General
| Contact Plating | Gold |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | White |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole, Horizontal |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
On-Shore USB-A1HSW6 Datasheet
Download the complete datasheet for On-Shore USB-A1HSW6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

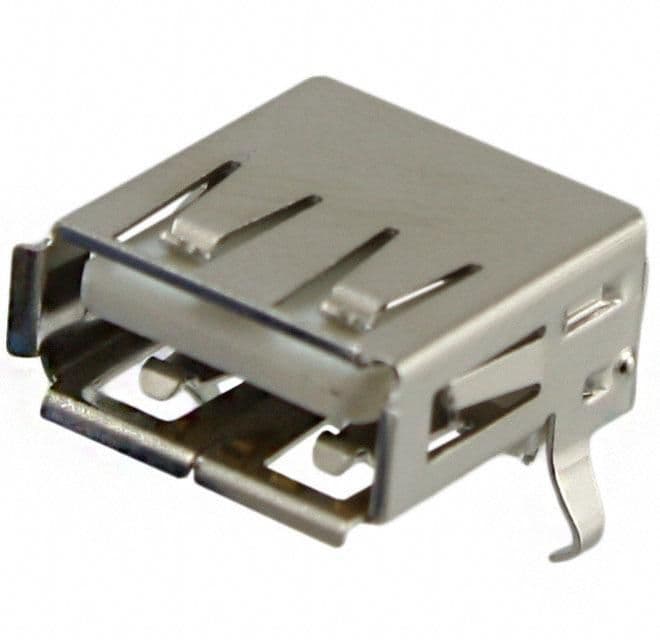

Product Images
