Unidirectional TVS Diode for surge suppression, featuring an axial package and through-hole mounting. Offers a 58.1V reverse standoff voltage with a 92V clamping voltage and 71.4V maximum breakdown voltage. Designed for power line protection with 5W power dissipation and a 16.3A maximum surge current capability. Operates across a wide temperature range from -65°C to 175°C.
PackageAxial
MountingThrough Hole
PolarityUnidirectional
Power5W
Quick Jump:
Technical Specifications
Onsemi 1.5KE68A technical specifications.
General
Package/Case
Axial
Clamping Voltage
92V
Diode Type
ZENER
Max Breakdown Voltage
71.4V
Min Breakdown Voltage
64.6V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
5W
Max Surge Current
16.3A
Mount
Through Hole
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
58.1V
Package Quantity
500
Packaging
Bulk
Peak Pulse Current
16.3A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
5W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
58.1V
RoHS Compliant
Yes
Series
Mosorb™
Termination
Axial
Compliance
RoHS
Compliant
Datasheet
Onsemi 1.5KE68A Datasheet
Download the complete datasheet for Onsemi 1.5KE68A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

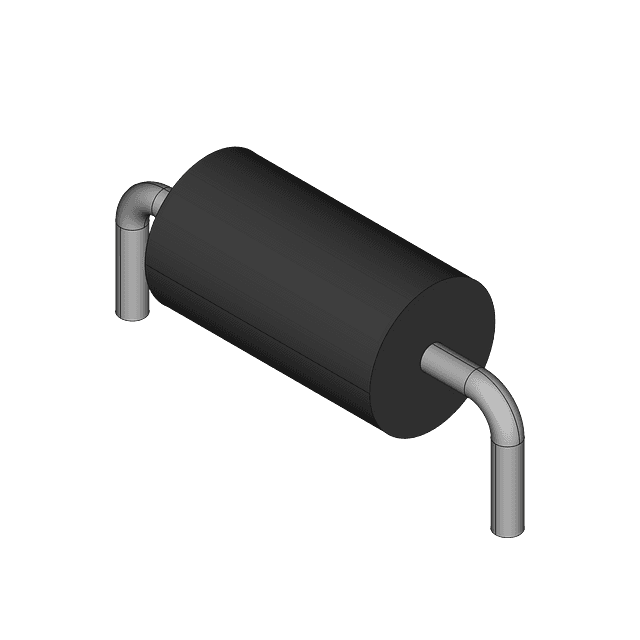

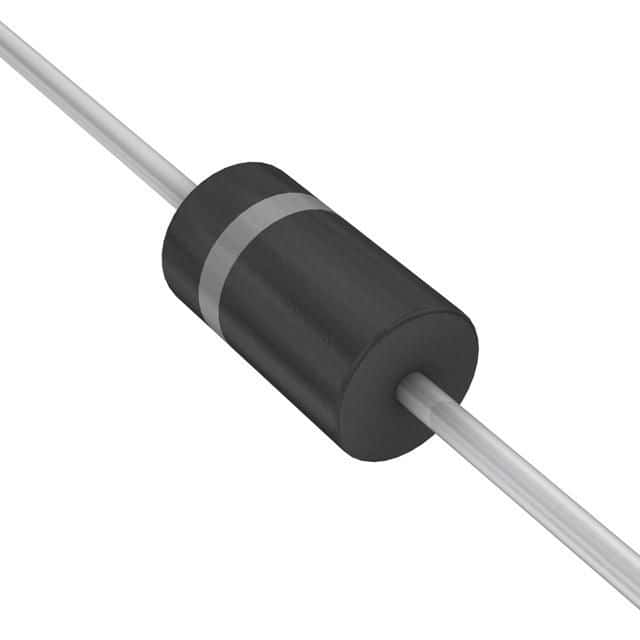

Product Images
