Unidirectional Zener Transient Voltage Suppressor (TVS) diode in SMC package, offering 1.5kW peak pulse power and 71A peak pulse current. Features a 12.8V reverse standoff voltage, 14.3V minimum breakdown voltage, and 21.2V clamping voltage. Designed for ESD protection with a low leakage current of 5uA. Operates across a wide temperature range from -65°C to 150°C, with 4W max power dissipation. This lead-free and halogen-free component is supplied on a 2500-piece tape and reel.
PackageSMC
Voltage Rating3.5V
Current Rating71A
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1.5SMC15AT3G technical specifications.
General
Package/Case
SMC
Clamping Voltage
21.2V
Clamping Voltage-Max
21.2V
Current Rating
71A
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.095inch
Lead Free
Lead Free
Leakage Current
5uA
Length
0.279inch
Max Breakdown Voltage
15.8V
Min Breakdown Voltage
14.3V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
4W
Max Reverse Leakage Current
5uA
Max Surge Current
71A
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
12.8V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
71A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
14.3V
Reverse Standoff Voltage
12.8V
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Termination
SMD/SMT
DC Rated Voltage
15V
Width
0.24inch
Working Voltage
3.5V
Zener Voltage
12.8V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1.5SMC15AT3G Datasheet
Download the complete datasheet for Onsemi 1.5SMC15AT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

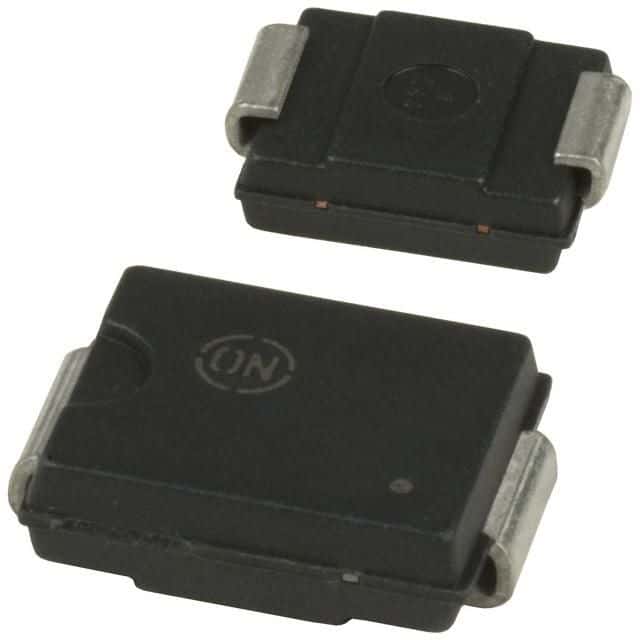

Product Images
