General purpose rectifier diode featuring a 400V repetitive reverse voltage and 1A forward current. This single element diode is housed in a DO-41 package with tin, matte contact plating and supports through-hole mounting. It offers a maximum forward surge current of 30A and operates within a temperature range of -55°C to 175°C. The component has a capacitance of 15pF and a power dissipation of 3W, with a maximum reverse current of 5µA.
PackageDO-41
Capacitance15pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 1N4004 technical specifications.
General
Average Rectified Current
1A
Capacitance
15pF
Package/Case
DO-41
Contact Plating
Tin, Matte
Current Rating
1A
Diameter
2.72mm
Element Configuration
Single
Forward Current
1A
Height
5.2mm
Lead Free
Lead Free
Length
5.2mm
Max Forward Surge Current (Ifsm)
30A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
400V
Max Surge Current
30A
Mount
Through Hole
Output Current
1A
Package Quantity
1000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Power Dissipation
3W
Reach SVHC Compliant
No
Reverse Voltage
400V
RoHS Compliant
Yes
DC Rated Voltage
400V
Weight
0.245g
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N4004 Datasheet
Download the complete datasheet for Onsemi 1N4004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

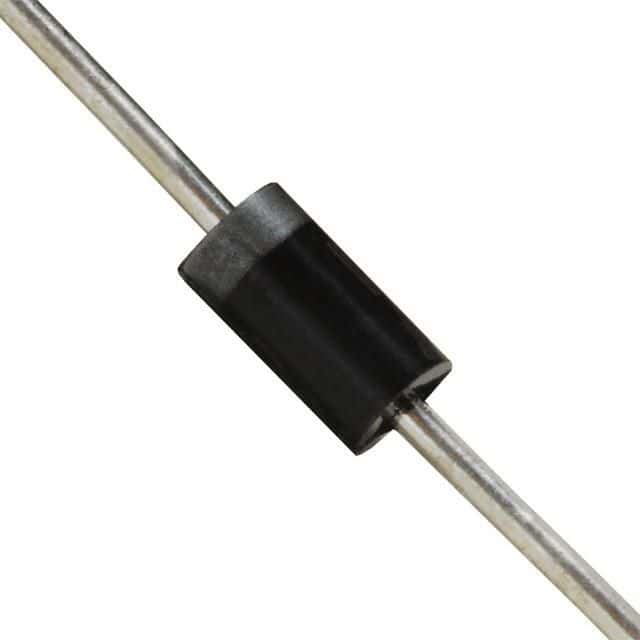

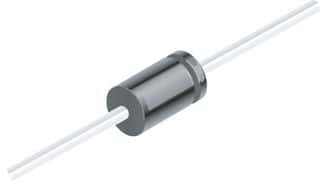

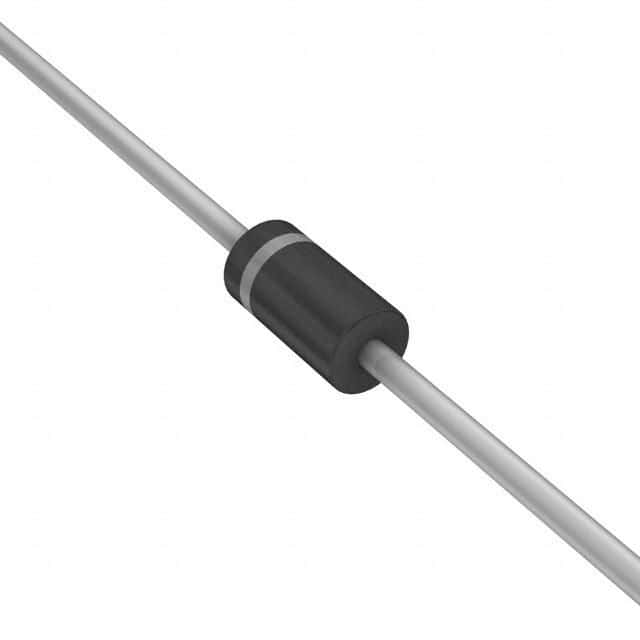

Product Images
