PackageDO-204AH
Voltage75V
Capacitance4pF
Current Rating200mA
Quick Jump:
Technical Specifications
Onsemi 1N4148.TR technical specifications.
General
Capacitance
4pF
Package/Case
DO-204AH
Current Rating
200mA
Forward Current
200mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
4A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Max Repetitive Reverse Voltage (Vrrm)
100V
Output Current
200mA
Outside Diameter
1.85mm
Packaging
Cut Tape
Polarity
Standard
Reach SVHC Compliant
No
Reverse Recovery Time
4ns
Termination
Axial
Voltage
75V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N4148.TR Datasheet
Download the complete datasheet for Onsemi 1N4148.TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

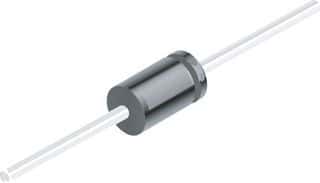

Product Images
