1W Zener Diode with 3.3V DC rated voltage and 5% tolerance. Features 1W power dissipation, 76mA Zener current, and 330mA output current. Housed in a DO-41 glass package with tin, matte contact plating, suitable for through-hole mounting. Operating temperature range from -65°C to 200°C. Packaged in tape and reel for 3000 units.
PackageDO-41
Voltage Rating3.3V
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Onsemi 1N4728ATR technical specifications.
General
Package/Case
DO-41
Contact Plating
Tin, Matte
Diameter
2.72mm
ESD Protection
No
Impedance
10R
Lead Free
Lead Free
Length
5.2mm
Material
Glass
Max Operating Temperature
200°C
Min Operating Temperature
-65°C
Max Power Dissipation
1W
Max Reverse Current
100uA
Max Reverse Leakage Current
100uA
Mount
Through Hole
Output Current
330mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
5%
DC Rated Voltage
3.3V
Voltage Tolerance
5%
Weight
0.245g
Working Voltage
3.3V
Zener Current
76mA
Zener Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N4728ATR Datasheet
Download the complete datasheet for Onsemi 1N4728ATR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

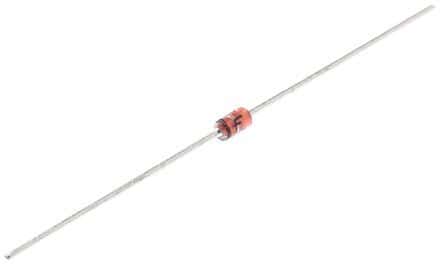

Product Images
