ONSEMI

1N5235B

Datasheet

6.8V Zener Diode, 500mW, DO-35, 5% Tolerance

Onsemi

1N5235B

Name: 1N5235B Onsemi
Brand: Onsemi
SKU: 1N5235B

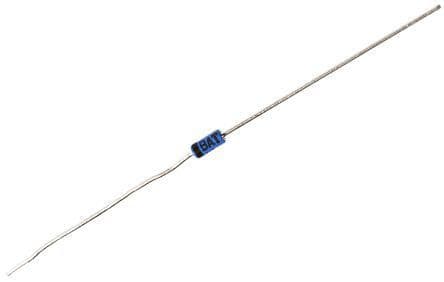

6.8V Zener Diode, 500mW, DO-35, 5% Tolerance

Single Zener Diode, 6.8V DC rated voltage with 5% tolerance. Features 500mW power dissipation, 3uA max reverse leakage current, and 20mA Zener current. Operates from -65°C to 200°C in a DO-35 through-hole package. RoHS compliant and lead-free.

PackageDO-35

Voltage Rating6.8V

MountingThrough Hole

Power500mW

Quick Jump:

Technical Specifications

Onsemi 1N5235B technical specifications.

General

Package/Case	DO-35
Height	1.91mm
Impedance	5R
Lead Free	Lead Free
Length	4.56mm
Max Operating Temperature	200°C
Min Operating Temperature	-65°C
Max Power Dissipation	500mW
Max Reverse Current	3uA
Max Reverse Leakage Current	3uA
Mount	Through Hole
Package Quantity	1000
Packaging	Bulk
Power Dissipation	500mW
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Tolerance	5%
DC Rated Voltage	6.8V
Voltage Tolerance	5%
Weight	80g
Width	1.91mm
Working Voltage	6.8V
Zener Current	20mA
Zener Voltage	6.8V
