10V Zener Diode, 500mW power dissipation, featuring a 10V DC rated voltage with 5% tolerance. This through-hole component is housed in a DO-35 package with tin-matte contact plating. Operating across a temperature range of -65°C to 200°C, it exhibits a maximum reverse leakage current of 3uA and an impedance of 17 Ohms.
PackageDO-35
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Onsemi 1N5240B technical specifications.
General
Package/Case
DO-35
Contact Plating
Tin, Matte
ESD Protection
No
Height
1.91mm
Impedance
17R
Lead Free
Lead Free
Length
4.56mm
Max Operating Temperature
200°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Max Reverse Leakage Current
3uA
Mount
Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
8V
RoHS Compliant
Yes
Tolerance
5%
DC Rated Voltage
10V
Voltage Tolerance
5%
Weight
80g
Width
1.91mm
Zener Current
20mA
Zener Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N5240B Datasheet
Download the complete datasheet for Onsemi 1N5240B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

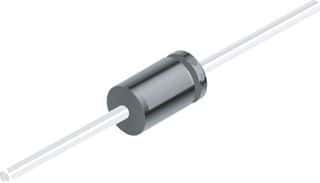

Product Images
