5W Zener Diode, 12V DC rated voltage, 5% tolerance. Features 5W power dissipation, 2µA max reverse leakage current, and 395mA zener current. Housed in an axial lead plastic package with dimensions of 8.89mm length, 3.68mm width, and 3.68mm height. Operates from -65°C to 200°C, is RoHS and Halogen Free compliant.
PackageAxial
Voltage Rating12V
Power5W
Quick Jump:
Technical Specifications
Onsemi 1N5349BRLG technical specifications.
General
Package/Case
Axial
Diode Type
ZENER
Halogen Free
Halogen Free
Height
3.68mm
Impedance
2.5R
Lead Free
Lead Free
Length
8.89mm
Material
Plastic
Max Operating Temperature
200°C
Min Operating Temperature
-65°C
Max Power Dissipation
5W
Max Reverse Current
2uA
Max Reverse Leakage Current
2uA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
5W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
1N53
Tolerance
5%
DC Rated Voltage
12V
Voltage Tolerance
5%
Width
3.68mm
Working Voltage
12V
Zener Current
395mA
Zener Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N5349BRLG Datasheet
Download the complete datasheet for Onsemi 1N5349BRLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

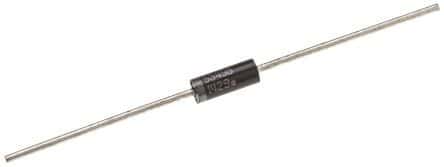

Product Images
