Technical Specifications
Onsemi 1N5367BRLG technical specifications.
General
| Package/Case | Axial |
| Halogen Free | Halogen Free |
| Impedance | 20R |
| Lead Free | Lead Free |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Current | 500nA |
| Max Reverse Leakage Current | 500nA |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 5W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Surmetic™ |
| Tolerance | 5% |
| DC Rated Voltage | 43V |
| Voltage Tolerance | 5% |
| Working Voltage | 43V |
| Zener Current | 110mA |
| Zener Voltage | 43V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N5367BRLG Datasheet
Download the complete datasheet for Onsemi 1N5367BRLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

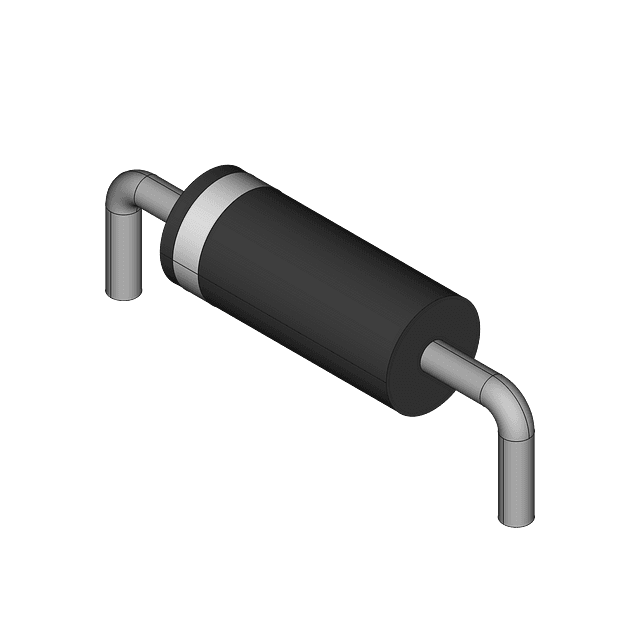

Product Images
