Unidirectional Transient Voltage Suppressor (TVS) diode with 1.5kW peak pulse power and 28A peak pulse current. Features a 39V DC rated voltage and 33.3V reverse standoff voltage, with a clamping voltage of 53.9V. Operates across a wide temperature range from -65°C to 175°C, offering ESD protection and low leakage current of 5uA. Packaged in an axial lead configuration with lead-free and halogen-free compliance.
PackageAxial
Voltage Rating3.5V
Current Rating28A
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1N6285AG technical specifications.
General
Package/Case
Axial
Clamping Voltage
53.9V
Clamping Voltage-Max
53.9V
Current Rating
28A
Diameter
5.3mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Halogen Free
Halogen Free
Lead Free
Lead Free
Leakage Current
5uA
Length
0.374inch
Max Breakdown Voltage
41V
Min Breakdown Voltage
37.1V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
5uA
Max Surge Current
28A
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
33.3V
Package Quantity
500
Packaging
Bulk
Peak Pulse Current
28A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
37.1V
Reverse Standoff Voltage
33.3V
RoHS Compliant
Yes
Series
Mosorb™
Termination
Axial
DC Rated Voltage
39V
Working Voltage
3.5V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N6285AG Datasheet
Download the complete datasheet for Onsemi 1N6285AG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

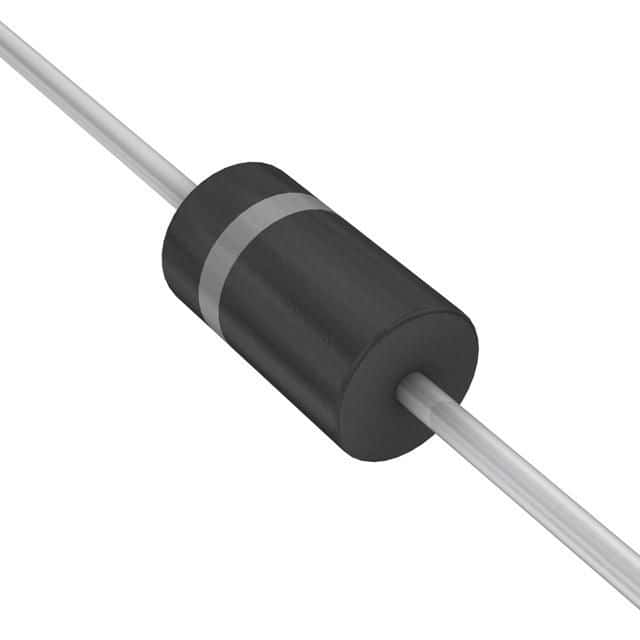

Product Images
