Unidirectional TVS diode for surge suppression, featuring a 36.8V reverse standoff voltage and 40.9V minimum breakdown voltage. This axial component offers a 59.3V clamping voltage and handles a peak pulse current of 25.3A with 1.5kW peak pulse power. Operating across a wide temperature range of -65°C to 175°C, it exhibits a low leakage current of 5µA. Designed with axial termination, this lead-free and RoHS compliant diode is supplied in bulk packaging.
PackageAxial
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1N6286A technical specifications.
General
Package/Case
Axial
Clamping Voltage
59.3V
Diameter
5.3mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
5uA
Length
9.5mm
Min Breakdown Voltage
40.9V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Surge Current
25.3A
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
36.8V
Package Quantity
500
Packaging
Bulk
Peak Pulse Current
25.3A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
40.9V
Reverse Standoff Voltage
36.8V
RoHS Compliant
Yes
Series
Mosorb™
Termination
Axial
DC Rated Voltage
43V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N6286A Datasheet
Download the complete datasheet for Onsemi 1N6286A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

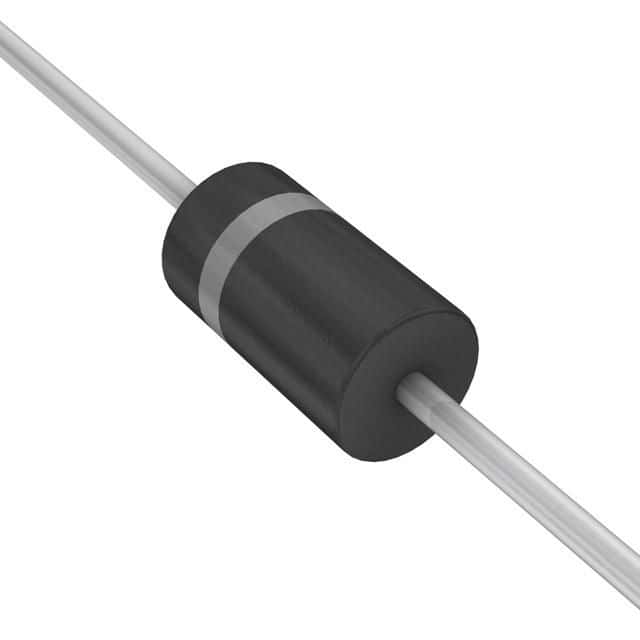

Product Images
