General purpose rectifier, this single element diode features a 200mA average rectified current and 2pF capacitance. It operates within a temperature range of -65°C to 175°C and withstands a maximum repetitive reverse voltage of 100V. The component offers a 4ns reverse recovery time and 500mW power dissipation, packaged in a DO-35 case with tin, matte contact plating. This RoHS compliant diode is designed for through-hole mounting and is supplied in bulk packaging.
PackageDO-35
Capacitance2pF
Current Rating200A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 1N916A technical specifications.
General
Average Rectified Current
200mA
Capacitance
2pF
Package/Case
DO-35
Contact Plating
Tin, Matte
Current Rating
200A
Element Configuration
Single
Forward Current
200mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
4A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
100V
Max Surge Current
4A
Mount
Through Hole
Output Current
200mA
Package Quantity
2000
Packaging
Bulk
Peak Non-Repetitive Surge Current
4A
Polarity
Standard
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
4ns
Reverse Recovery Time-Max
4ns
Reverse Voltage
100V
RoHS Compliant
Yes
DC Rated Voltage
100V
Weight
80g
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N916A Datasheet
Download the complete datasheet for Onsemi 1N916A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

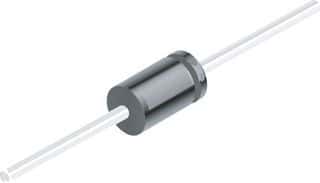

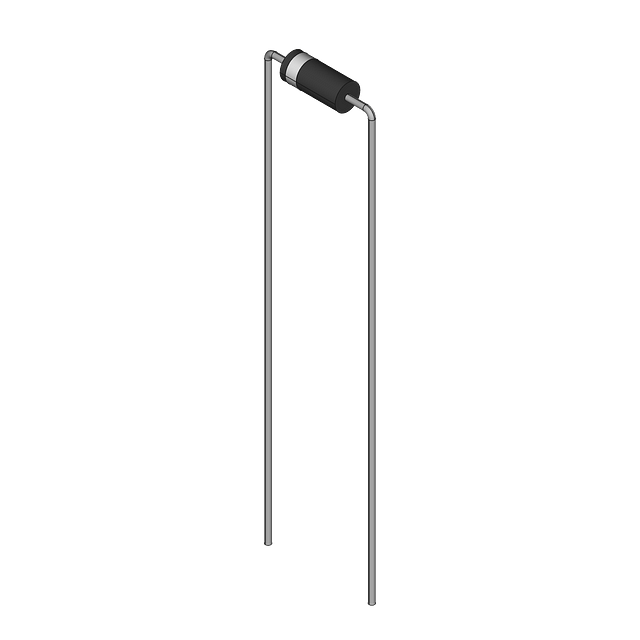

Product Images
