The 1PMT16AT3 is a unidirectional Zener diode with a clamping voltage of 26V and a minimum breakdown voltage of 17.8V. It has a maximum operating temperature of 150°C and a maximum surge current of 7.7A. The diode is packaged in a DO-216AA case and is suitable for surface mount applications. It is not RoHS compliant and contains lead.
PackageDO-216AA
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1PMT16AT3 technical specifications.
General
| Package/Case | DO-216AA |
| Clamping Voltage | 26V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Contains Lead |
| Min Breakdown Voltage | 17.8V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 7.7A |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 16V |
| Package Quantity | 12000 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 1kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 16V |
| RoHS Compliant | No |
| Termination | SMD/SMT |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi 1PMT16AT3 Datasheet
Download the complete datasheet for Onsemi 1PMT16AT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

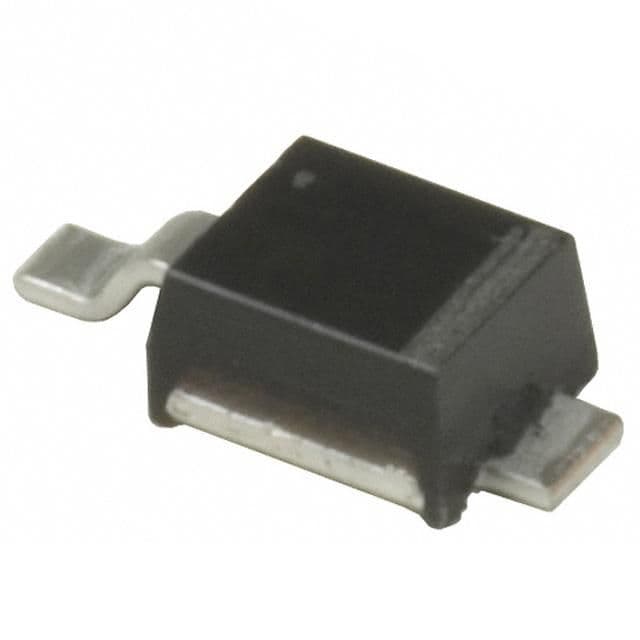

Product Images
