Unidirectional Transient Voltage Suppressor (TVS) diode offering 5V DC rated voltage and 5V reverse standoff voltage. Features a 6.4V minimum breakdown voltage and 9.2V clamping voltage. Designed for 200W peak pulse power, with a maximum surge current of 21.7A. Housed in a compact DO-216AA package with SMD/SMT termination, measuring 2.18mm x 2.05mm x 1.15mm. Operates across a wide temperature range of -55°C to 150°C. Supplied in 3000-piece tape and reel packaging.
PackageDO-216AA
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1PMT5.0AT1 technical specifications.
General
Package/Case
DO-216AA
Clamping Voltage
9.2V
Diode Type
ZENER
Direction
Unidirectional
Height
1.15mm
Lead Free
Contains Lead
Length
2.18mm
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
21.7A
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Power
1kW
Polarity
Unidirectional
Power Line Protection
No
Reverse Standoff Voltage
5V
RoHS Compliant
No
Termination
SMD/SMT
DC Rated Voltage
5V
Width
2.05mm
Compliance
RoHS
Not Compliant
Datasheet
Onsemi 1PMT5.0AT1 Datasheet
Download the complete datasheet for Onsemi 1PMT5.0AT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

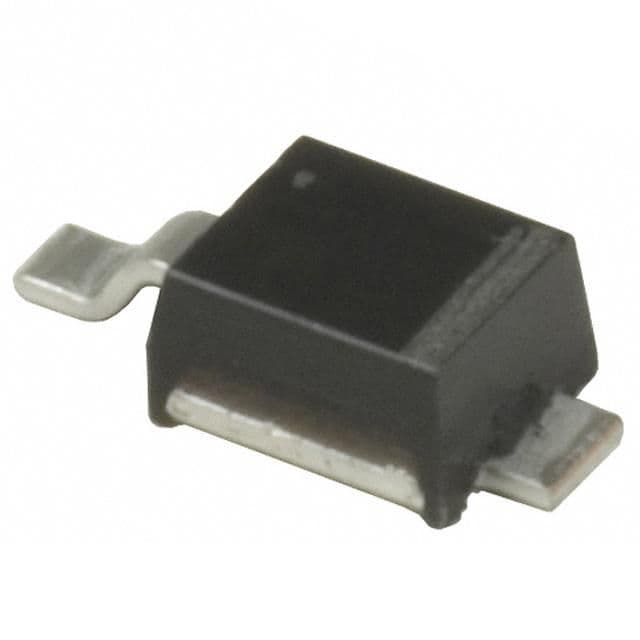

Product Images
