Unidirectional Transient Voltage Suppressor (TVS) diode with 200W peak pulse power dissipation and 5V reverse standoff voltage. Features a 6.4V minimum breakdown voltage and 7V maximum breakdown voltage, with a 9.2V clamping voltage. Designed for ESD protection, this SMD/SMT component offers a 21.7A peak pulse current capability and operates within a -55°C to 150°C temperature range. Packaged in a DO-216AA POWERMITE case, it is halogen and lead-free, with a low leakage current of 50uA.
PackageDO-216AA
Voltage Rating5V
PolarityUnidirectional
Power200W
Quick Jump:
Technical Specifications
Onsemi 1PMT5.0AT1G technical specifications.
General
Package/Case
DO-216AA
Clamping Voltage
9.2V
Clamping Voltage-Max
9.2V
Depth
2.05mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Halogen Free
Halogen Free
Height
1.15mm
Lead Free
Lead Free
Leakage Current
50uA
Length
2.18mm
Max Breakdown Voltage
7V
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
50uA
Max Surge Current
21.7A
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
21.7A
Peak Pulse Power
1kW
Polarity
Unidirectional
Power Dissipation
200W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
6.4V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
5V
Width
2.18mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1PMT5.0AT1G Datasheet
Download the complete datasheet for Onsemi 1PMT5.0AT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

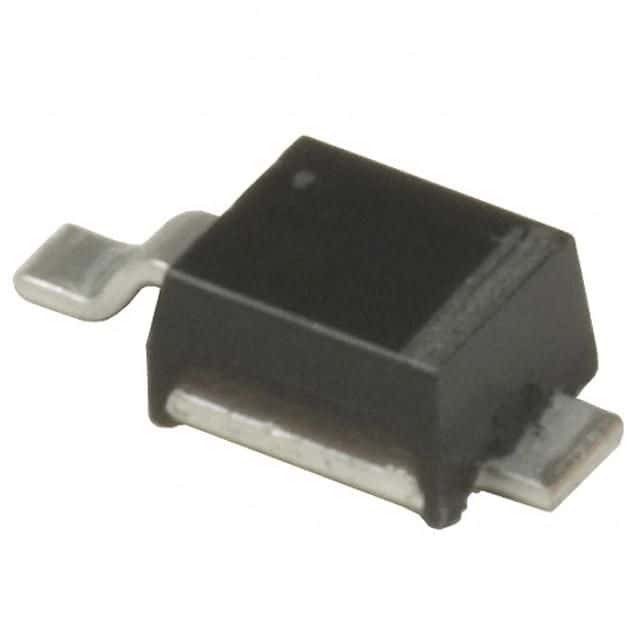

Product Images
