Technical Specifications
Onsemi 1SMA5926BT3G technical specifications.
General
| Package/Case | SMA |
| Contact Plating | Tin, Matte |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 2.05mm |
| Impedance | 5.5R |
| Lead Free | Lead Free |
| Length | 4.57mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 500nA |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Width | 2.92mm |
| Zener Current | 136mA |
| Zener Voltage | 11V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1SMA5926BT3G Datasheet
Download the complete datasheet for Onsemi 1SMA5926BT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

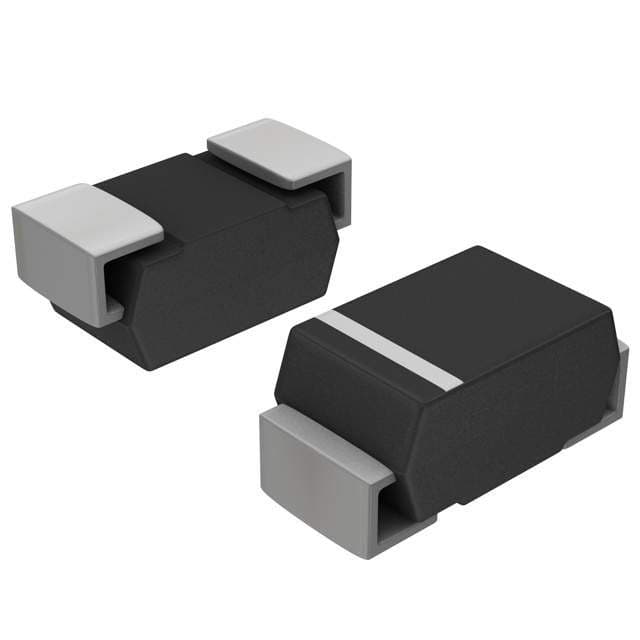

Product Images
