Unidirectional transient voltage suppressor in SMB package, featuring a 5V DC rated voltage and 600W peak pulse power. Offers a 65.2A peak pulse current with a 9.2V clamping voltage and 6.4V minimum breakdown voltage. Operates across a -65°C to 150°C temperature range. SMD/SMT termination for surface mount applications.
PackageSMB
Voltage5V
Current652A
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1SMB5.0AT3 technical specifications.
General
Package/Case
SMB
Clamping Voltage
9.2V
Current
652A
Diode Type
ZENER
Direction
Unidirectional
Height
2.41mm
Lead Free
Contains Lead
Length
4.57mm
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Surge Current
65.2A
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5V
Package Quantity
10
Packaging
Tape and Reel
Peak Pulse Current
65.2A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Line Protection
No
Reverse Standoff Voltage
5V
RoHS Compliant
No
Termination
SMD/SMT
Thickness
2.41mm
Voltage
5V
DC Rated Voltage
5V
Width
3.81mm
Compliance
RoHS
Not Compliant
Datasheet
Onsemi 1SMB5.0AT3 Datasheet
Download the complete datasheet for Onsemi 1SMB5.0AT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

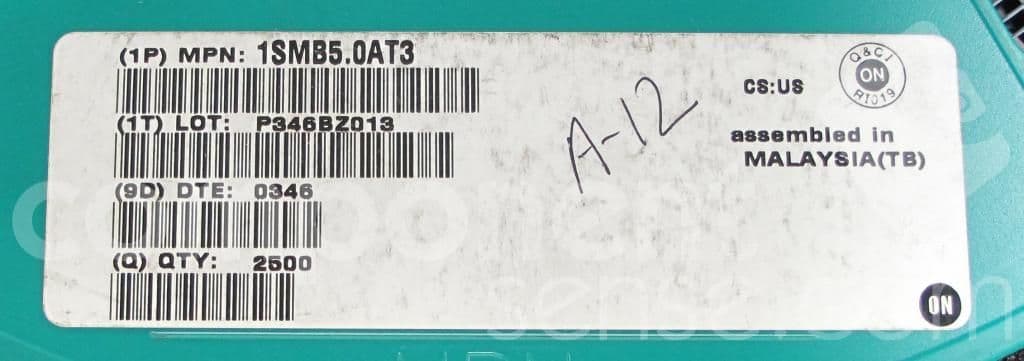

Product Images
