33V Zener Diode Voltage Regulator, 550mW Power Dissipation, 5% Voltage Tolerance. Features a 33V Zener Voltage with a Zener Current of 45mA and a Max Reverse Leakage Current of 1uA. Packaged in an SMB case with dimensions of 4.6mm length, 3.95mm width, and 2.28mm height. Operating temperature range from -65°C to 150°C. This component is RoHS compliant and Halogen Free.
PackageSMB
Voltage Rating33V
Power550mW
Quick Jump:
Technical Specifications
Onsemi 1SMB5937BT3G technical specifications.
General
Package/Case
SMB
Diode Type
ZENER
Halogen Free
Halogen Free
Height
2.28mm
Impedance
33R
Lead Free
Lead Free
Length
4.6mm
Material
Plastic
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
550mW
Max Reverse Current
1uA
Max Reverse Leakage Current
1uA
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
550mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
5%
DC Rated Voltage
33V
Voltage Tolerance
5%
Width
3.95mm
Working Voltage
33V
Zener Current
45mA
Zener Voltage
33V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1SMB5937BT3G Datasheet
Download the complete datasheet for Onsemi 1SMB5937BT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

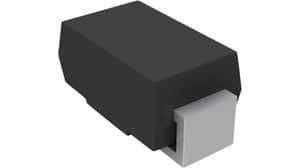

Product Images
