Quick Jump:
Technical Specifications
Onsemi 1SMB8.0AT3G technical specifications.
General
| Package/Case | SMB |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Min Breakdown Voltage | 8.89V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 50uA |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 44.1A |
| Peak Pulse Power | 600W |
| Power Line Protection | No |
| Reverse Standoff Voltage | 8V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1SMB8.0AT3G Datasheet
Download the complete datasheet for Onsemi 1SMB8.0AT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

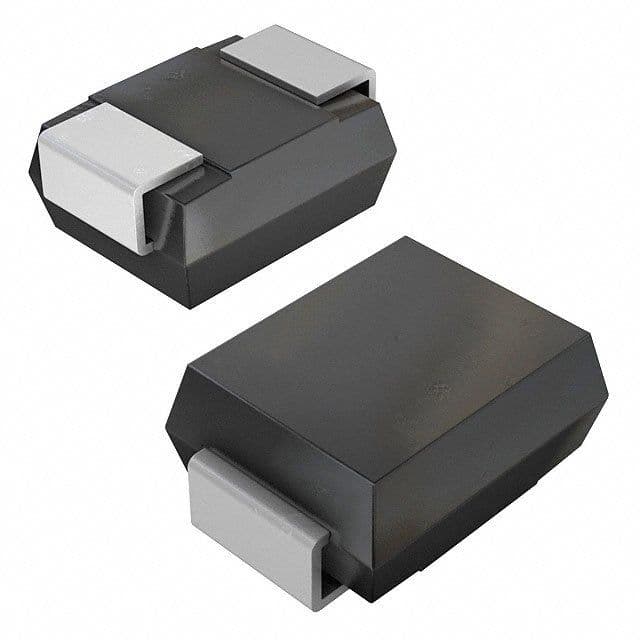

Product Images
