NPN bipolar junction transistor (BJT) in a TO-92 package. Features a collector-emitter breakdown voltage of 40V, maximum collector current of 200mA, and a transition frequency of 300MHz. Collector-emitter saturation voltage is 300mV, with a minimum DC current gain (hFE) of 40. This through-hole component operates from -55°C to 150°C and has a maximum power dissipation of 625mW. Packaged on a 2000-piece tape and reel.
Frequency300MHz
PackageTO-92-3
Current Rating200mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 2N3904RL1G technical specifications.
General
| Package/Case | TO-92-3 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Collector-emitter Voltage-Max | 300mV |
| Current Rating | 200mA |
| Emitter Base Voltage (VEBO) | 6V |
| Frequency | 300MHz |
| Gain Bandwidth Product | 300MHz |
| hFE Min | 40 |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 200mA |
| Max Frequency | 300MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 625mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 625mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 300MHz |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 2N3904RL1G Datasheet
Download the complete datasheet for Onsemi 2N3904RL1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

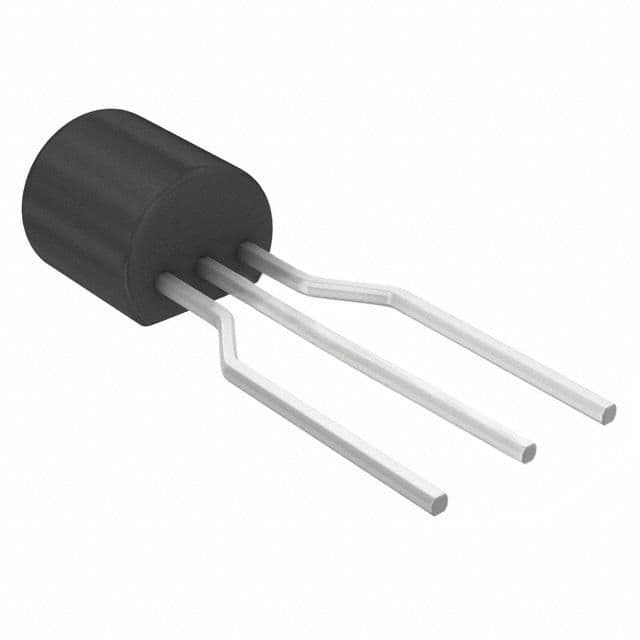

Product Images
