NPN Bipolar Junction Transistor (BJT) for general-purpose applications. Features a 40V Collector-Emitter Voltage (VCEO) and a 200mA maximum collector current. Operates with a 300MHz transition frequency and a minimum hFE of 100. Packaged in TO-92 for through-hole mounting, supplied on a 2000-piece tape and reel. RoHS compliant with a maximum power dissipation of 625mW.
Frequency300MHz
PackageTO-92
Current Rating200mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 2N3904TF technical specifications.
General
Package/Case
TO-92
Collector Base Voltage (VCBO)
60V
Collector Emitter Breakdown Voltage
40V
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
40V
Collector-emitter Voltage-Max
300mV
Current Rating
200mA
Emitter Base Voltage (VEBO)
6V
Frequency
300MHz
Gain Bandwidth Product
300MHz
Height
5.33mm
hFE Min
100
Lead Free
Lead Free
Length
5.2mm
Max Breakdown Voltage
40V
Max Collector Current
200mA
Max Frequency
300MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
625mW
Mount
Through Hole
Number of Elements
1
Package Quantity
2000
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
625mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Transition Frequency
300MHz
DC Rated Voltage
40V
Weight
0.24g
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Onsemi 2N3904TF Datasheet
Download the complete datasheet for Onsemi 2N3904TF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

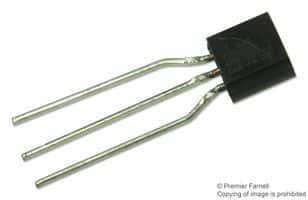

Product Images
