Technical Specifications
Onsemi 74LCX11BQX technical specifications.
General
| Contact Plating | Gold |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | AND GATE |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Inputs | 3 |
| Number of Outputs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 6ns |
| Quiescent Current | 10uA |
| RoHS Compliant | Yes |
| Series | 74LCX |
| Technology | CMOS |
| Weight | 0.12g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 74LCX11BQX Datasheet
Download the complete datasheet for Onsemi 74LCX11BQX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

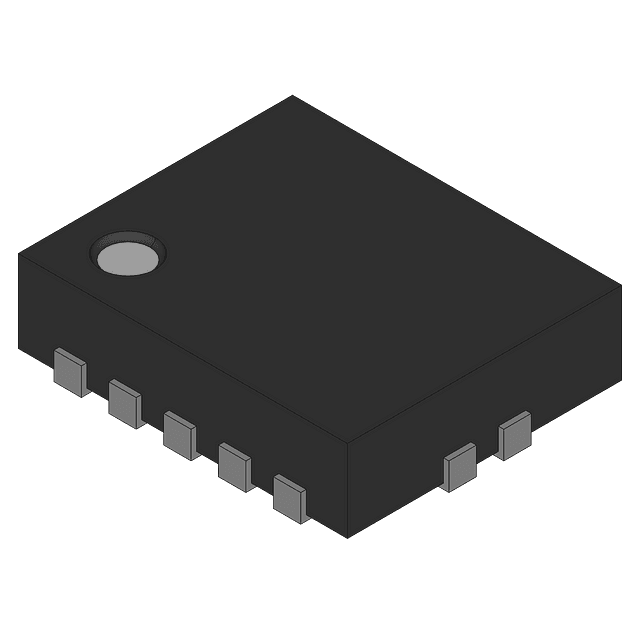

Product Images
