8-bit, 3-state buffer/line driver featuring 5V tolerant inputs and outputs. This CMOS logic IC operates from a 2V to 3.6V supply, with a nominal voltage of 3.6V. It offers non-inverting logic with a propagation delay of 10ns and a turn-on delay time of 7.5ns. The component supports a high level output current of -24mA and a low level output current of 24mA, with a quiescent current of 10uA. Packaged in a surface-mount SOIC case with tin, matte contact plating, it is RoHS compliant.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74LCX244WM technical specifications.
General
Package/Case
SOIC
Contact Plating
Tin, Matte
Height
2.34mm
High Level Output Current
-24mA
Lead Free
Lead Free
Length
13mm
Logic Function
Buffer, Inverting
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
4
Number of Channels
8
Number of Elements
2
Number of Functions
2
Number of Gates
8
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
8
Number of Outputs
8
Output Type
3-STATE
Package Quantity
36
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
10ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LCX
Supply Voltage-Nom
3.6V
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
7.5ns
Weight
0.801g
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Onsemi 74LCX244WM Datasheet
Download the complete datasheet for Onsemi 74LCX244WM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

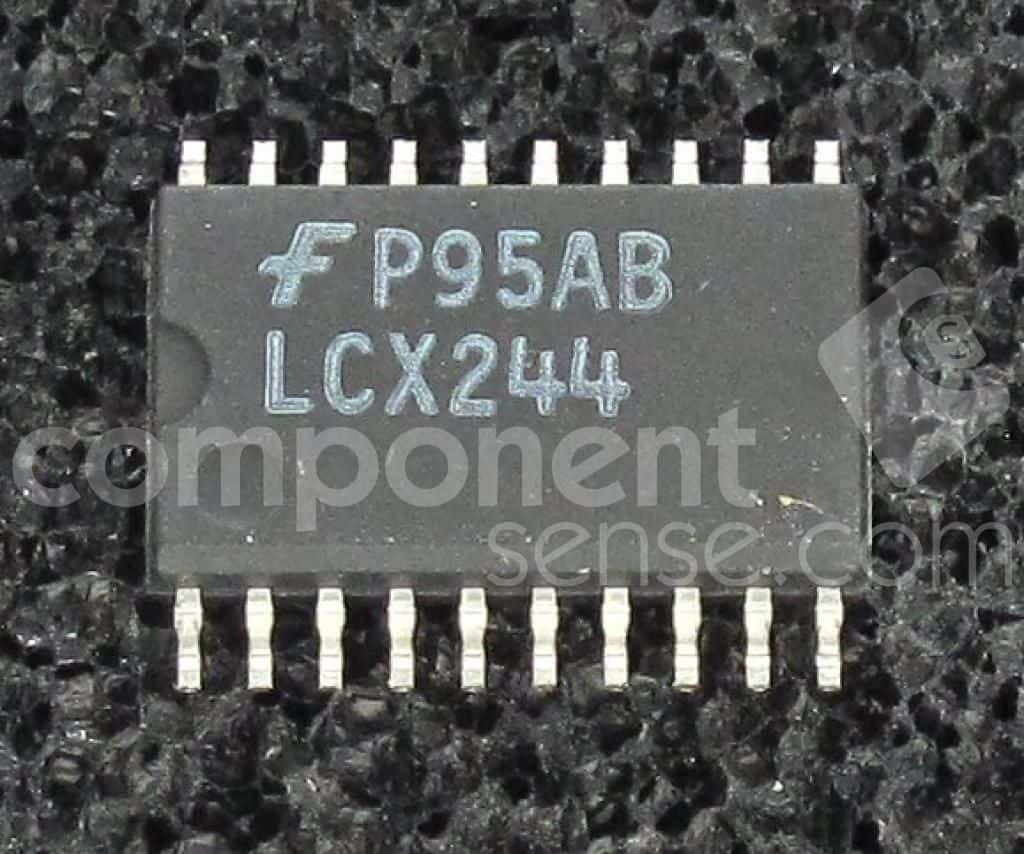

Product Images
