8-bit, 3-state, bidirectional bus transceiver for surface mount applications. Features CMOS technology, a 2V to 3.6V supply voltage range, and 8 channels. Offers a propagation delay of 10.5ns and an 8ns turn-on delay. Packaged in a 20-pin SOIC with tin/matte contact plating, operating from -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74LCX245WM technical specifications.
General
Package/Case
SOIC
Contact Plating
Tin, Matte
Direction
Bidirectional
Height
2.34mm
High Level Output Current
-24mA
Lead Free
Lead Free
Length
12.8mm
Logic Function
Transceiver, Inverting
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Functions
1
Number of Gates
8
Number of Inputs
8
Number of Transceivers
8
Output Type
3-STATE
Package Quantity
36
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
10.5ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LCX
Supply Voltage-Nom
3.6V
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
8ns
Weight
0.801g
Width
7.47mm
Compliance
RoHS
Compliant
Datasheet
Onsemi 74LCX245WM Datasheet
Download the complete datasheet for Onsemi 74LCX245WM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

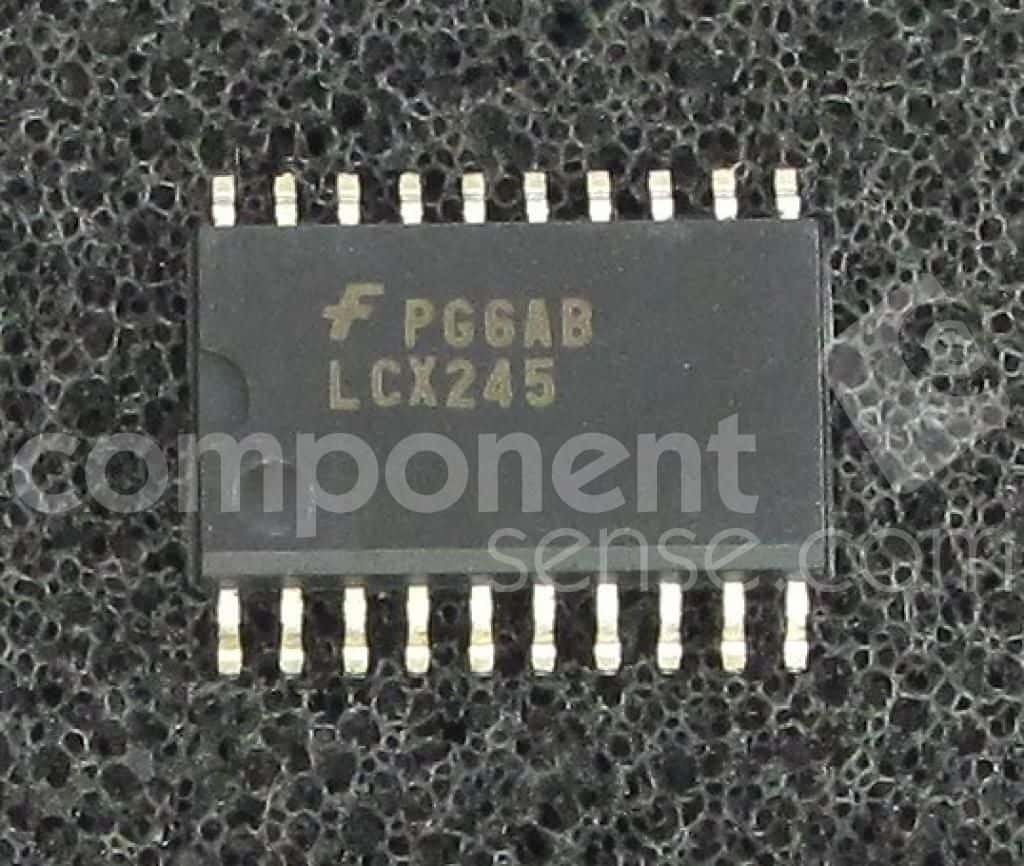

Product Images
