Octal transparent latch, D-type logic function, featuring 8 bits and 3-state outputs. Operates with a 2V to 3.6V supply voltage, supporting 5V tolerant inputs and outputs. Offers 24mA output current (high and low) and an 8ns propagation delay. Packaged in SOIC for surface mounting, this CMOS component is RoHS compliant and operates from -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74LCX373WM technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| High Level Output Current | -24mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | Latch, D-Type |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 3 |
| Output Current | 24mA |
| Output Type | 3-STATE |
| Package Quantity | 36 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 8ns |
| Quiescent Current | 10uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LCX |
| Supply Voltage-Nom | 3.6V |
| Technology | CMOS |
| Turn-On Delay Time | 1.5ns |
| Weight | 0.801g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 74LCX373WM Datasheet
Download the complete datasheet for Onsemi 74LCX373WM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

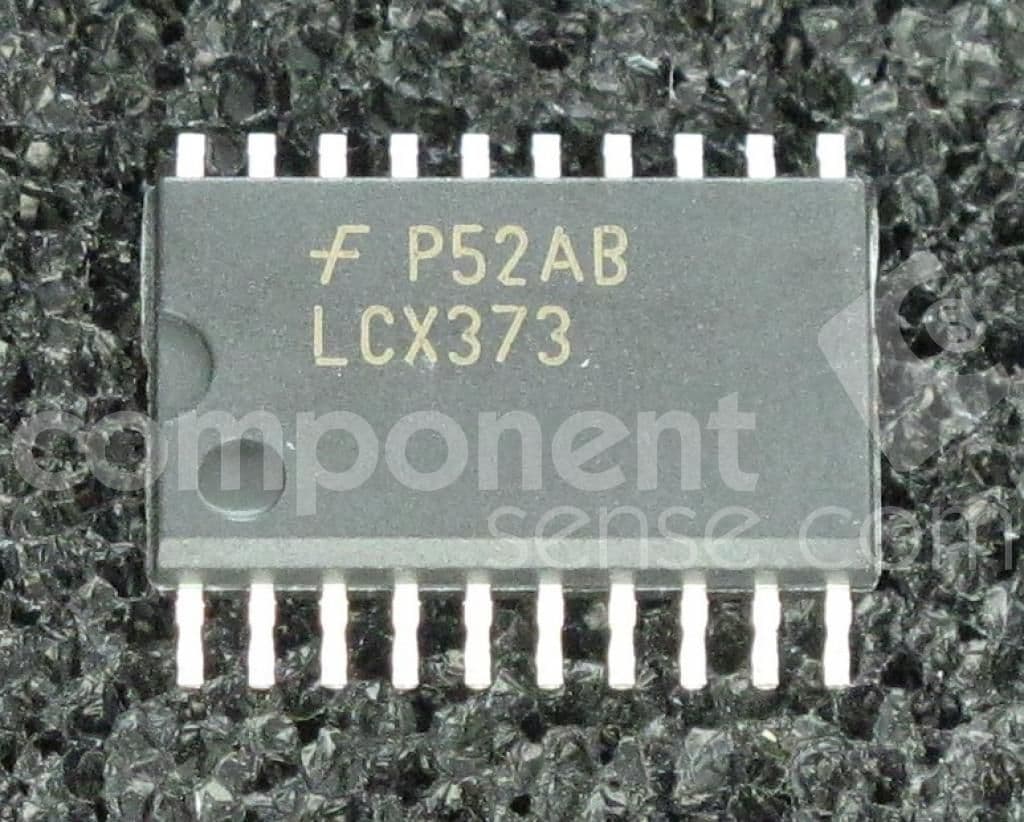

Product Images
