Quad buffer with 3-STATE outputs, designed for surface mount applications in a TSSOP package with gold contact plating. This CMOS logic IC features four independent buffer elements, each with one input and one output, supporting a 2V to 5.5V supply voltage range. It offers a high level output current of -8mA and a low level output current of 8mA, with a propagation delay of 7.5ns. Operating across a temperature range of -40°C to 85°C, this RoHS compliant component is supplied on a 2500-piece tape and reel.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74VHC125MTCX technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Gold |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Functions | 4 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 3 |
| Number of Outputs | 4 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 7.5ns |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74VHC |
| Supply Voltage-Nom | 5.5V |
| Technology | CMOS |
| Turn-On Delay Time | 15ns |
| Weight | 0.0553g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 74VHC125MTCX Datasheet
Download the complete datasheet for Onsemi 74VHC125MTCX to view detailed technical specifications.
No datasheet is available for this part.

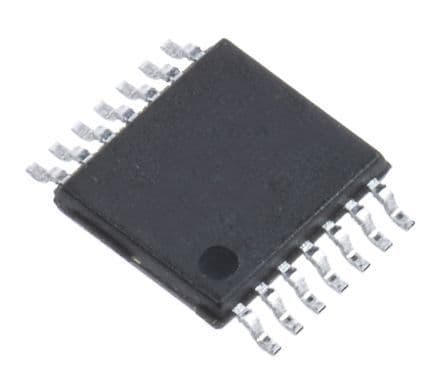

Product Images
