Onsemi
7SB3126MUTCG
Single 5V 5.5V Supply Voltage Logic Buffer, 1-Element, 1-Bit, 125°C, RoHS Compliant
The 7SB3126MUTCG is a single-supply voltage logic buffer from Onsemi. It operates within a temperature range of -55°C to 125°C and is compliant with RoHS regulations. This device has a maximum power dissipation of 252mW and a propagation delay of 4.8ns. The buffer features a high level output current of -128mA and a low level output current of 128mA, with a quiescent current of 100nA. It is packaged in a VSON, SOLCC6 package and is available on tape and reel.
Quick Jump:
Technical Specifications
Onsemi 7SB3126MUTCG technical specifications.
General
| Contact Plating | Gold |
| Halogen Free | Halogen Free |
| High Level Output Current | -128mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 252mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Number of Bits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Propagation Delay | 4.8ns |
| Quiescent Current | 100nA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 7SB3126MUTCG Datasheet
Download the complete datasheet for Onsemi 7SB3126MUTCG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

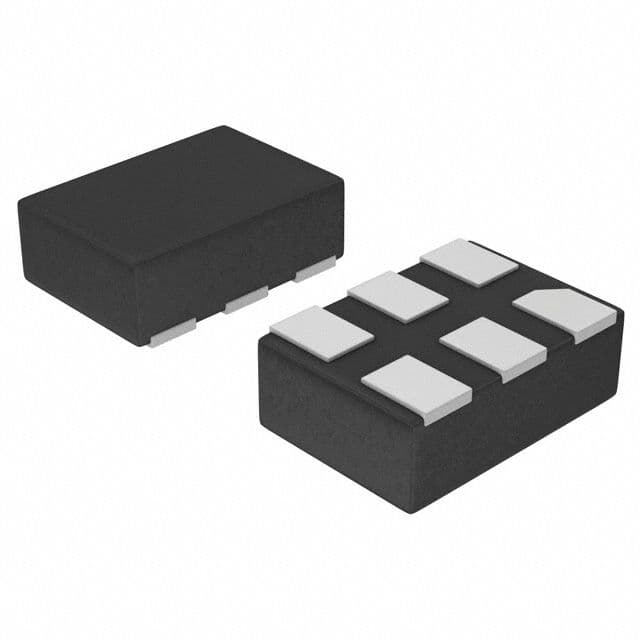

Product Images
