Single element, surface mount rectifier diode for general purpose switching applications. Features 200mA average rectified current, 85V repetitive reverse voltage, and a fast 6ns reverse recovery time. With a low 2pF capacitance and 200mW power dissipation, this diode is ideal for compact designs. Operates across a wide temperature range from -55°C to 150°C. Packaged in a 2-pin SOD-323 surface mount package.
Capacitance2pF
Current Rating200mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi BAS16HT1G technical specifications.
General
Average Rectified Current
200mA
Capacitance
2pF
Contact Plating
Tin, Matte
Current Rating
200mA
Element Configuration
Single
Forward Current
200mA
Height
0.9mm
Lead Free
Lead Free
Length
1.7mm
Max Forward Surge Current (Ifsm)
500mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
85V
Max Reverse Current
1uA
Max Reverse Leakage Current
1uA
Max Reverse Voltage (DC)
100V
Max Surge Current
600mA
Mount
Surface Mount
Output Current
200mA
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
600mA
Polarity
Standard
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
6ns
Reverse Recovery Time-Max
6ns
Reverse Voltage
85V
RoHS Compliant
Yes
DC Rated Voltage
75V
Weight
0.033g
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BAS16HT1G Datasheet
Download the complete datasheet for Onsemi BAS16HT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

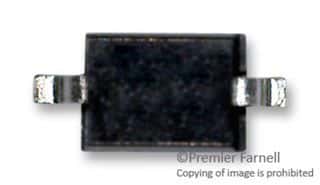

Product Images
