PackageSOT-563
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Onsemi BAS70SV technical specifications.
General
Average Rectified Current
70mA
Package/Case
SOT-563
Element Configuration
Dual
Forward Current
70mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
2.5A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
100nA
Max Reverse Leakage Current
2.5uA
Max Reverse Voltage (DC)
70V
Max Surge Current
2.5A
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
2.5A
Power Dissipation
200mW
Radiation Hardening
No
Reverse Recovery Time
8ns
RoHS Compliant
Yes
Weight
0.013g
Compliance
RoHS
Compliant
Datasheet
Onsemi BAS70SV Datasheet
Download the complete datasheet for Onsemi BAS70SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

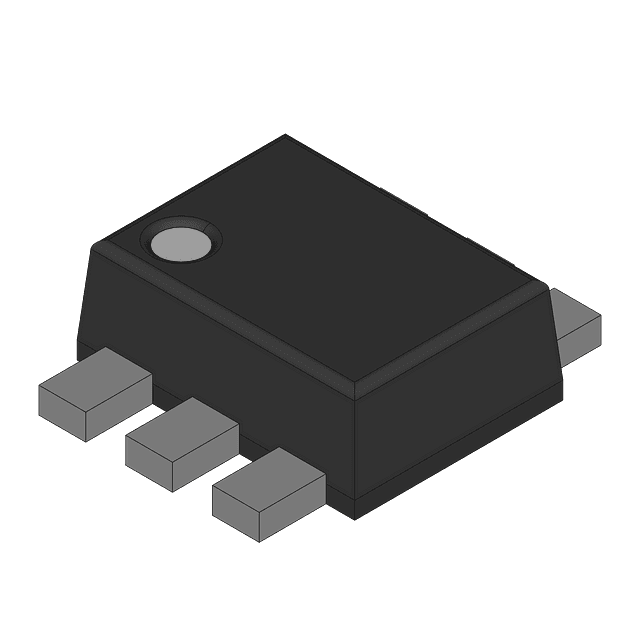

Product Images
