Technical Specifications
Onsemi BAV74LT3G technical specifications.
General
| Average Rectified Current | 200mA |
| Package/Case | SOT-23-3 |
| Current Rating | 200mA |
| Element Configuration | Common Cathode |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 225mW |
| Max Reverse Leakage Current | 100nA |
| Max Reverse Voltage (DC) | 50V |
| Max Surge Current | 500mA |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BAV74LT3G Datasheet
Download the complete datasheet for Onsemi BAV74LT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

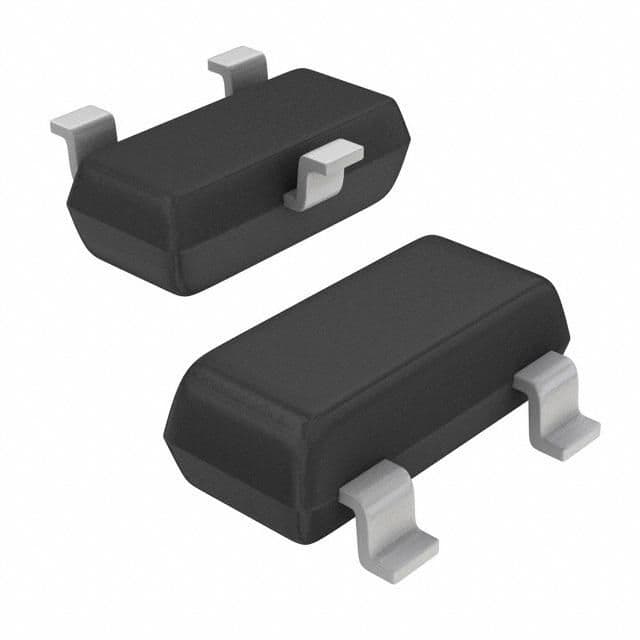

Product Images
