PNP Bipolar Junction Transistor (BJT) in a TO-92 package, featuring a 60V Collector-Emitter Voltage (VCEO) and a 1A continuous collector current rating. This through-hole component offers a minimum DC current gain (hFE) of 40 and a transition frequency of 150MHz. It operates within a temperature range of -55°C to 150°C and has a maximum power dissipation of 1W.
Frequency100MHz
PackageTO-92-3
Current Rating-1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi BC638 technical specifications.
General
Package/Case
TO-92-3
Collector Base Voltage (VCBO)
80V
Collector Emitter Breakdown Voltage
60V
Collector Emitter Saturation Voltage
-500mV
Collector Emitter Voltage (VCEO)
60V
Collector-emitter Voltage-Max
500mV
Current Rating
-1A
Emitter Base Voltage (VEBO)
-5V
Frequency
100MHz
Gain Bandwidth Product
150MHz
hFE Min
40
Lead Free
Lead Free
Max Breakdown Voltage
60V
Max Collector Current
500mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
625mW
Mount
Through Hole
Number of Elements
1
Package Quantity
5000
Packaging
Bulk
Polarity
PNP
Power Dissipation
1W
RoHS Compliant
No
Transition Frequency
150MHz
DC Rated Voltage
-60V
Weight
0.201g
Compliance
RoHS
Not Compliant
Datasheet
Onsemi BC638 Datasheet
Download the complete datasheet for Onsemi BC638 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

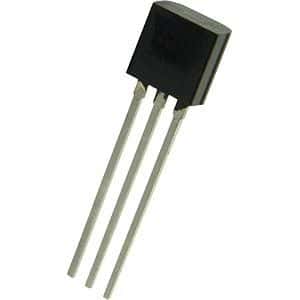

Product Images
