PNP Bipolar Junction Transistor (BJT) in a SOT-23-3 package. Features a collector-emitter voltage (VCEO) of 45V, maximum collector current of 500mA, and a power dissipation of 300mW. Offers a minimum DC current gain (hFE) of 250 and a transition frequency of 100MHz. Operates across a temperature range of -55°C to 150°C. Packaged in a 10000-unit tape and reel.
Frequency100MHz
PackageSOT-23-3
PolarityPNP
Power300mW
Quick Jump:
Technical Specifications
Onsemi BC807-40LT3G technical specifications.
General
Package/Case
SOT-23-3
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Saturation Voltage
-700mV
Collector Emitter Voltage (VCEO)
45V
Collector-emitter Voltage-Max
700mV
Emitter Base Voltage (VEBO)
5V
Frequency
100MHz
Gain Bandwidth Product
100MHz
Halogen Free
Halogen Free
Height
0.94mm
hFE Min
250
Lead Free
Lead Free
Length
2.9mm
Max Breakdown Voltage
45V
Max Collector Current
500mA
Max Frequency
100MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Number of Elements
1
Package Quantity
10000
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
300mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Transition Frequency
100MHz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BC807-40LT3G Datasheet
Download the complete datasheet for Onsemi BC807-40LT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

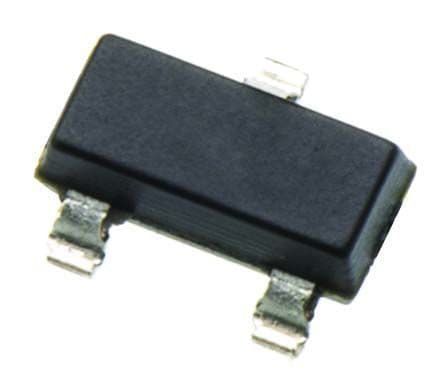

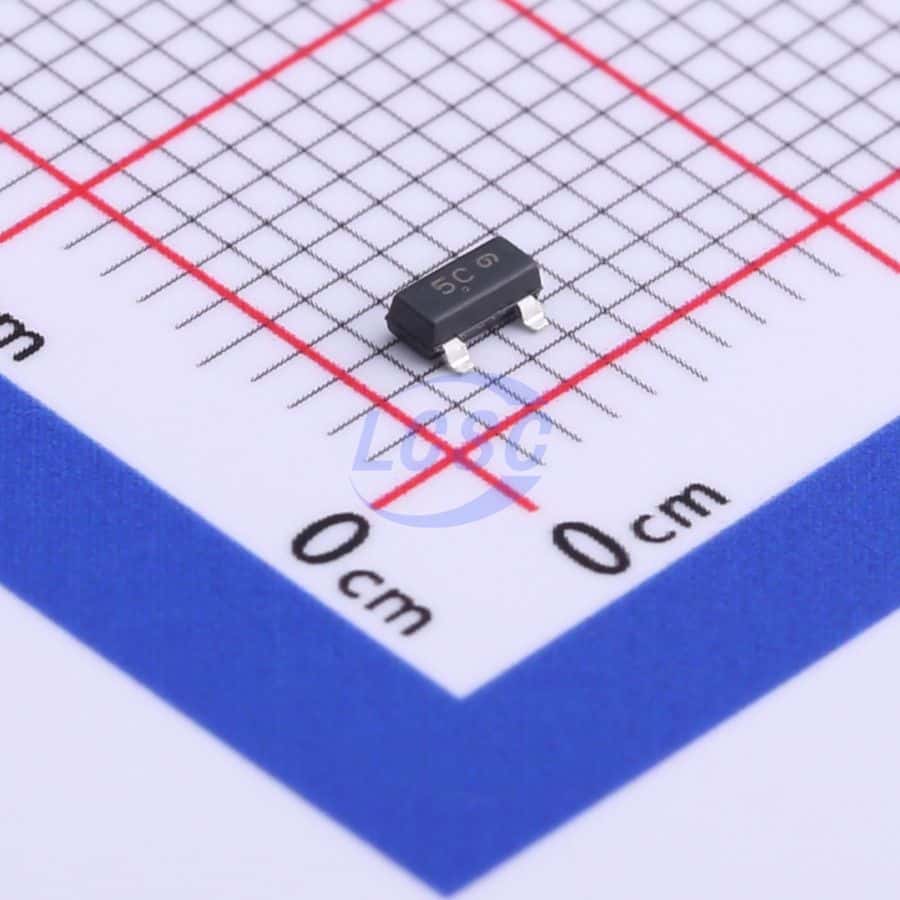

Product Images
