Frequency100MHz
PackageSC
PolarityPNP
Quick Jump:
Technical Specifications
Onsemi BC807-40WT1G technical specifications.
General
Package/Case
SC
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Saturation Voltage
-700mV
Collector-emitter Voltage-Max
700mV
Contact Plating
Tin, Matte
Emitter Base Voltage (VEBO)
-5V
Halogen Free
Halogen Free
Height
0.9mm
Lead Free
Lead Free
Length
2.2mm
Max Breakdown Voltage
45V
Max Collector Current
500mA
Max Frequency
100MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
460mW
Package Quantity
3000
Packaging
Tape and Reel
Polarity
PNP
RoHS Compliant
Yes
Transition Frequency
100MHz
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BC807-40WT1G Datasheet
Download the complete datasheet for Onsemi BC807-40WT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

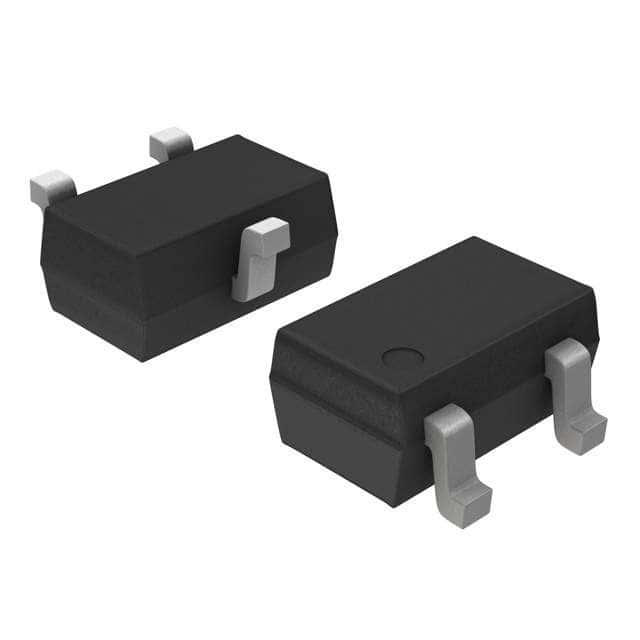

Product Images
