Technical Specifications
Onsemi BC847BPDXV6T1 technical specifications.
General
| Package/Case | SOT-563-6 |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 600mV |
| Collector-emitter Voltage-Max | 600mV |
| Current Rating | 100mA |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 200 |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Packaging | Tape and Reel |
| Polarity | NPN, PNP |
| RoHS Compliant | Yes |
| Transition Frequency | 100MHz |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BC847BPDXV6T1 Datasheet
Download the complete datasheet for Onsemi BC847BPDXV6T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

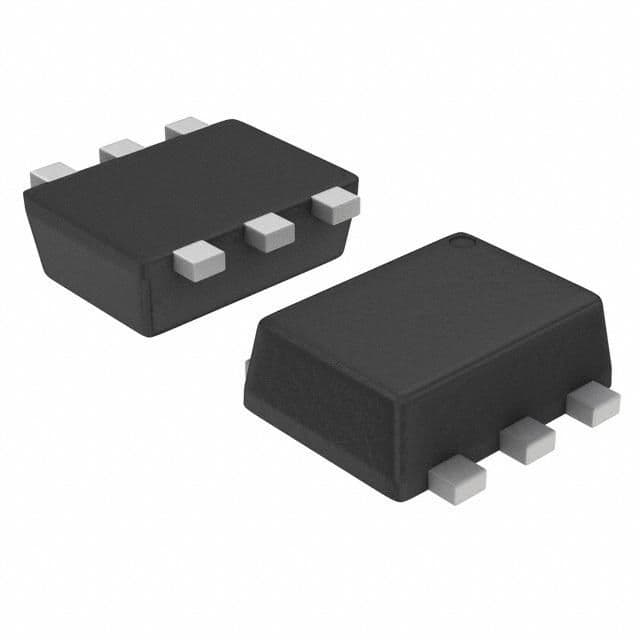

Product Images
