PNP Epitaxial Silicon Transistor, 4000-REEL. Features a 45V Collector-Emitter Voltage (VCEO) and 1.5A Max Collector Current. This surface mount device comes in a SOT-223 package with a maximum power dissipation of 1W. Operating temperature range is -55°C to 150°C.
PackageSOT-223
Current Rating1.5A
MountingSurface Mount
PolarityPNP
Quick Jump:
Technical Specifications
Onsemi BCP51 technical specifications.
General
Package/Case
SOT-223
Collector Base Voltage (VCBO)
-45V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Saturation Voltage
-500mV
Collector Emitter Voltage (VCEO)
45V
Collector-emitter Voltage-Max
500mV
Contact Plating
Tin, Matte
Current Rating
1.5A
Emitter Base Voltage (VEBO)
-5V
Height
1.6mm
hFE Min
40
Lead Free
Lead Free
Length
6.5mm
Max Breakdown Voltage
45V
Max Collector Current
1.5A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Surface Mount
Number of Elements
1
Package Quantity
4000
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
1W
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
45V
Weight
0.188g
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BCP51 Datasheet
Download the complete datasheet for Onsemi BCP51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

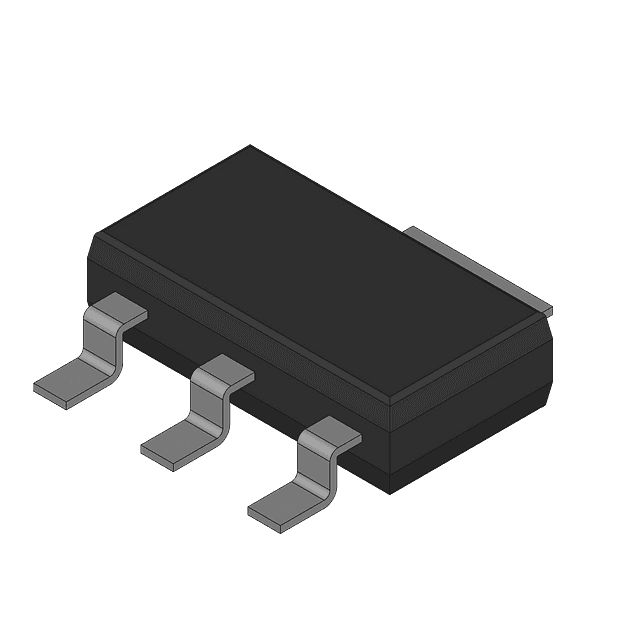

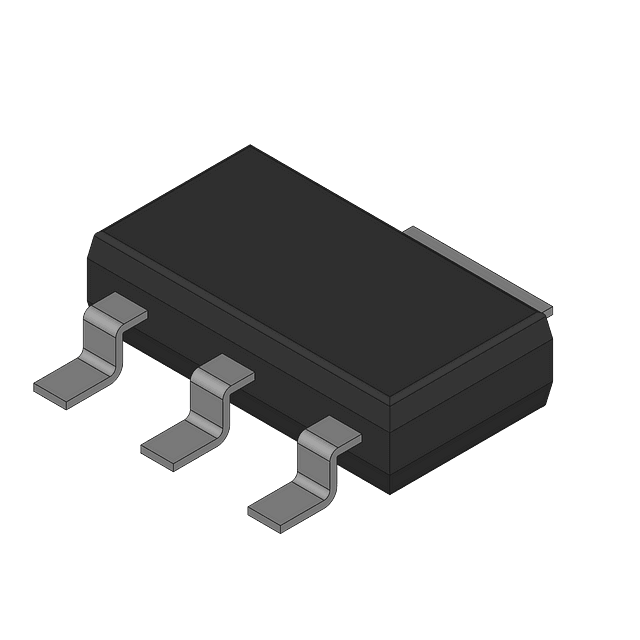

Product Images
