PackageSOT-223-4
Current Rating-1.5A
PolarityPNP
Quick Jump:
Technical Specifications
Onsemi BCP53-10T1 technical specifications.
General
Package/Case
SOT-223-4
Collector Base Voltage (VCBO)
-100V
Collector Emitter Saturation Voltage
-500mV
Collector-emitter Voltage-Max
-80V
Current Rating
-1.5A
Emitter Base Voltage (VEBO)
5V
Gain Bandwidth Product
50MHz
hFE Min
25
Lead Free
Contains Lead
Max Collector Current
1.5A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
1.5W
Package Quantity
1000
Packaging
Tape and Reel
Polarity
PNP
RoHS Compliant
No
DC Rated Voltage
-80V
Compliance
RoHS
Not Compliant
Datasheet
Onsemi BCP53-10T1 Datasheet
Download the complete datasheet for Onsemi BCP53-10T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

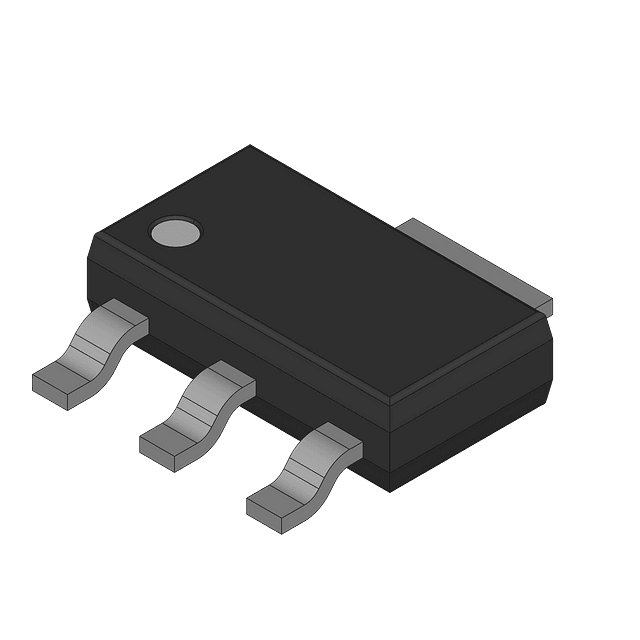

Product Images
