Medium power NPN bipolar junction transistor in a TO-126 package. Features a maximum collector current of 4A and a collector-emitter voltage of 45V. Offers a transition frequency of 3MHz and a minimum DC current gain (hFE) of 40. Designed for through-hole mounting with a maximum power dissipation of 36W. Operates across a wide temperature range from -65°C to 150°C.
Frequency3MHz
PackageTO-126
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi BD437S technical specifications.
General
| Package/Case | TO-126 |
| Collector Base Voltage (VCBO) | 45V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Collector-emitter Voltage-Max | 600mV |
| Contact Plating | Tin, Matte |
| Current Rating | 4A |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 3MHz |
| Gain Bandwidth Product | 3MHz |
| Height | 11mm |
| hFE Min | 40 |
| Lead Free | Lead Free |
| Length | 8mm |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 4A |
| Max Frequency | 3MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 36W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 250 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 36W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 3MHz |
| DC Rated Voltage | 45V |
| Weight | 0.761g |
| Width | 3.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BD437S Datasheet
Download the complete datasheet for Onsemi BD437S to view detailed technical specifications.
No datasheet is available for this part.

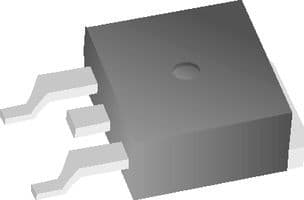

Product Images
