PackageTO-225-3
Current Rating4A
PolarityNPN
Power40W
Quick Jump:
Technical Specifications
Onsemi BD677 technical specifications.
General
Package/Case
TO-225-3
Collector Base Voltage (VCBO)
60V
Collector Emitter Breakdown Voltage
60V
Collector-emitter Voltage-Max
2.5V
Continuous Collector Current
4A
Current Rating
4A
Emitter Base Voltage (VEBO)
5V
hFE Min
750
Lead Free
Lead Free
Max Collector Current
4A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
40W
Package Quantity
500
Packaging
Bulk
Polarity
NPN
Power Dissipation
40W
Reach SVHC Compliant
Yes
RoHS Compliant
No
DC Rated Voltage
60V
Compliance
RoHS
Not Compliant
Datasheet
Onsemi BD677 Datasheet
Download the complete datasheet for Onsemi BD677 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

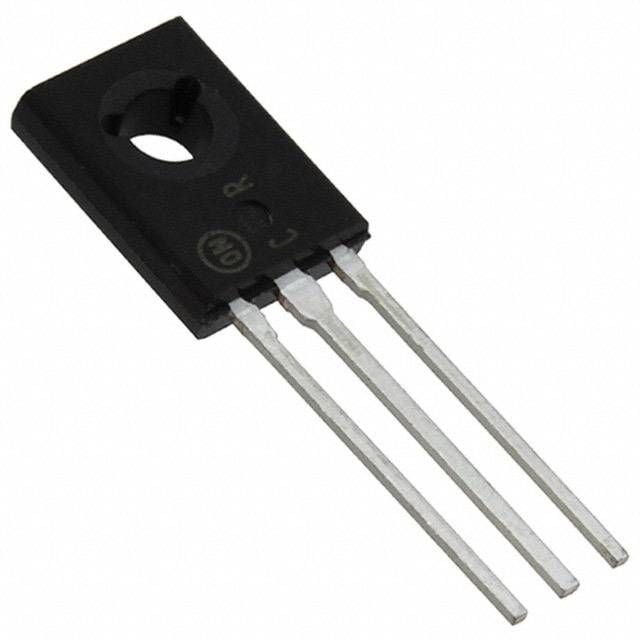

Product Images
