Onsemi
BTA12-800BW3G
Triac, 3 Quadrant Internally Isolated, 50 mA IGT, 12 A IT(RMS) 800 V, TO-220 3 LEAD STANDARD, 50-TUBE
PackageTO-220-3
Quick Jump:
Technical Specifications
Onsemi BTA12-800BW3G technical specifications.
General
Package/Case
TO-220-3
Height
15.75mm
Hold Current
50mA
Length
10.28mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RMS Current (Irms)
12A
RoHS Compliant
Yes
Series
BTA12-50MA
Width
4.82mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BTA12-800BW3G Datasheet
Download the complete datasheet for Onsemi BTA12-800BW3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

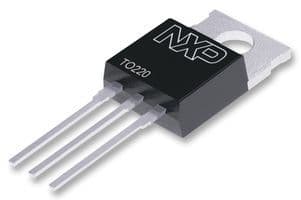

Product Images
