ONSEMI

BZX79C2V4

Datasheet

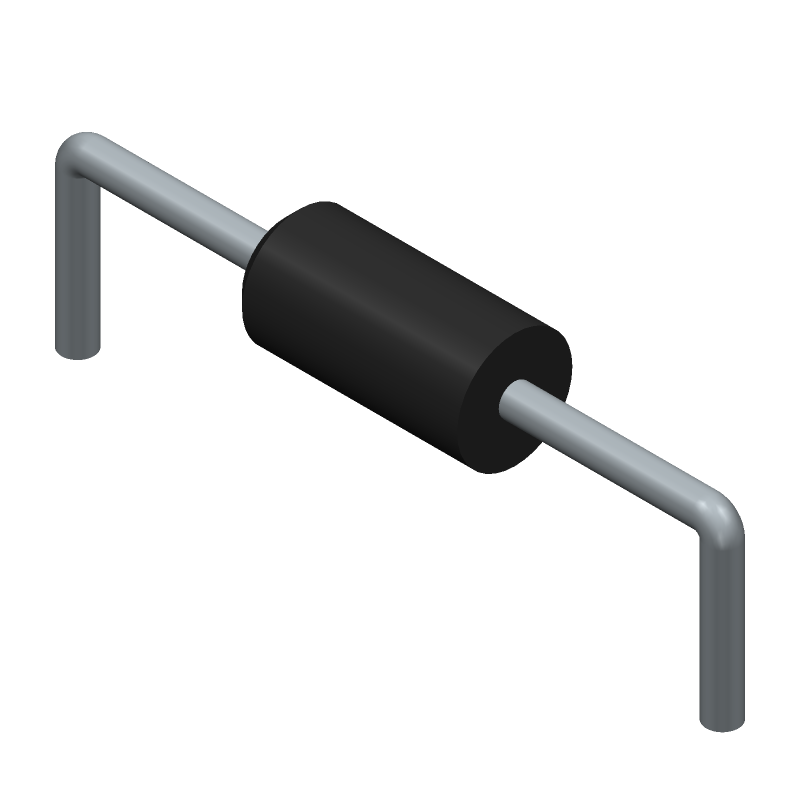

2.4V Zener Diode, 500mW, 5% Tol, DO-35, Through Hole

Onsemi

BZX79C2V4

Name: BZX79C2V4 Onsemi
Brand: Onsemi
SKU: BZX79C2V4

2.4V Zener Diode, 500mW, 5% Tol, DO-35, Through Hole

500mW Zener Diode with 2.4V DC rated voltage and 5% voltage tolerance. Features 255pF capacitance, 100R impedance, and 5mA Zener current. Packaged in a DO-35 through-hole mount case with tin, matte contact plating. Operates from -65°C to 200°C with 100uA max reverse leakage current. RoHS compliant and lead-free.

PackageDO-35

Capacitance255pF

MountingThrough Hole

Power500mW

Quick Jump:

Technical Specifications

Onsemi BZX79C2V4 technical specifications.

General

Capacitance	255pF
Package/Case	DO-35
Contact Plating	Tin, Matte
Diameter	1.91mm
ESD Protection	No
Impedance	100R
Lead Free	Lead Free
Length	4.56mm
Max Operating Temperature	200°C
Min Operating Temperature	-65°C
Max Power Dissipation	500mW
Max Reverse Leakage Current	100uA
Mount	Through Hole
Package Quantity	1000
Packaging	Bulk
Power Dissipation	500mW
Reach SVHC Compliant	No
RoHS Compliant	Yes
Tolerance	5%
DC Rated Voltage	2.4V
Voltage Tolerance	5%
Weight	80g
Zener Current	5mA
Zener Voltage	2.4V
